750101

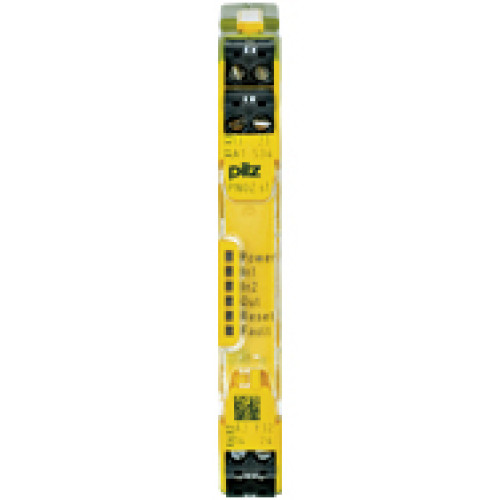

PNOZsigma Safety relay (standalone). Inputs: 1-channel wiring. Outputs: 2 N/O, 1 semiconductor. UB 24 V DC, width: 12.5 mm. Plug-i

Manufacturer's No: PNOZ s1 24VDC 2 n/o     Manufacturer: Pilz
PNOZsigma Safety relay (standalone). Inputs: 1-channel wiring. Outputs: 2 N/O, 1 semiconductor. UB 24 V DC, width: 12.5 mm. Plug-in terminals of screw type Monitoring E-STOP, safety gates.

Availability In Stock

£131.78
  • Safety relay for standalone use
  • Inputs: 1-channel wiring, manual/automatic start
  • Outputs: 2 N/O, 1 SC
  • Supply voltage: 24 VDC
  • Width: 12.5 mm
  • Plug-in screw terminals
  • Monitoring of E-STOP and safety gates

Accessories



Product

Manufacturer Material ID -
PNOZ s1 24VDC 2 n/o
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
Pilz
Model -
Basic device
With approval according to UL -
With detachable clamps -
With start input -
Number of outputs, safety related, undelayed, with contact -
2
Number of outputs, signalling function, undelayed, semiconductors -
1
Rail mounting possible -
Suitable for monitoring of magnetic switches -
Suitable for monitoring of proximity switches -
Suitable for monitoring of emergency-stop circuits -
Suitable for monitoring of position switches -
Suitable for monitoring of valves -
Performance level acc. to EN ISO 13849-1 -
Level c
Evaluation inputs -
1-channel
SIL according to IEC 61508 -
2
Depth -
120 Millimetre
Height -
98 Millimetre
Type of electric connection -
Screw connection
Width -
12.5 Millimetre
With approval for TÜV -
Pilz

Availability In Stock

£131.78
