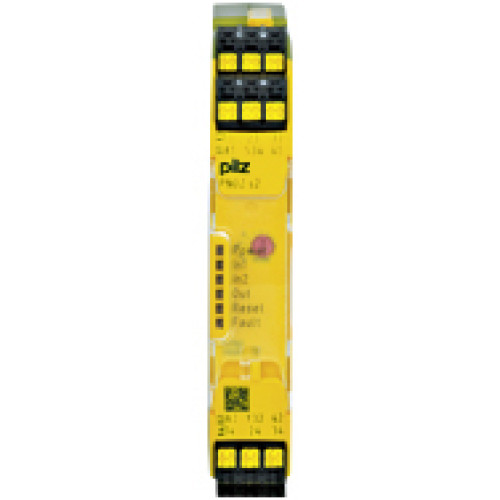

PNOZsigma Safety relay (standalone). Inputs: Single-channel wiring. Outputs: 3 N/O, 1 N/C, 1 semiconductor UB 24 V DC, width: 17.5

Manufacturer's No: PNOZ s2 C 24VDC 3 n/o 1 n/c     Manufacturer: Pilz
PNOZsigma Safety relay (standalone). Inputs: Single-channel wiring. Outputs: 3 N/O, 1 N/C, 1 semiconductor UB 24 V DC, width: 17.5 mm, plug-in spring-loaded terminals Monitoring E-STOP, safety gates.

Availability Back Order

£155.48
  • Safety relay: PNOZsigma
  • Standalone unit
  • Inputs: 1-channel wiring without short circuit detection
  • Manual and automatic start options
  • Outputs: 3 N/O, 1 N/C, 1 SC
  • Power supply: 24 V DC
  • Width: 17.5 mm
  • Plug-in spring-loaded terminals
  • Monitoring of E-STOP and safety gates

Accessories



Product

Manufacturer Material ID -
PNOZ s2 C 24VDC 3 n/o 1 n/c
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Model -
Basic device
With approval according to UL -
With detachable clamps -
With start input -
With feedback circuit -
Number of outputs, safety related, undelayed, with contact -
3
Number of outputs, signalling function, undelayed, with contact -
1
Number of outputs, signalling function, undelayed, semiconductors -
1
Rail mounting possible -
Suitable for monitoring of magnetic switches -
Suitable for monitoring of proximity switches -
Suitable for monitoring of emergency-stop circuits -
Suitable for monitoring of position switches -
Suitable for monitoring of valves -
Performance level acc. to EN ISO 13849-1 -
Level e
Evaluation inputs -
1-channel
SIL according to IEC 61508 -
3
Depth -
120 Millimetre
Height -
100 Millimetre
Type of electric connection -
Spring clamp connection
Width -
17.5 Millimetre
With approval for TÜV -
Pilz
