Safety relay Functions: Start/restart interlock (RES), Automatic start/restart, Static contactor monitoring (EDM), Stop function a

Manufacturer's No: MSI-MC310     Manufacturer: Leuze
Safety relay Functions: Start/restart interlock (RES), Automatic start/restart, Static contactor monitoring (EDM), Stop function according to category Stop 0; Restart: Automatic, Manual; Performance

Availability Back Order

£207.00
  • Evaluation unit for magnetically coded sensors with antivalent reed contacts
  • Functions: Start/restart interlock (RES), Static contactor monitoring (EDM)
  • Restart options: Automatic, Manual
  • Safety Integrity Level (SIL): 3, IEC 61508
  • Performance Level (PL): e, EN ISO 13849-1
  • Safety Category: 4, EN ISO 13849-1
  • STOP Category: 0, IEC/EN 60204-1
  • Contacts: 1 Normally Open (NO) contact, 1 Normally Closed (NC) contact
  • Number of safety-related switching outputs (OSSDs): 2
  • Number of switching outputs: 1

Read more

  • Safety-related switching output 1: Relay, NO
  • Safety-related switching output 2: Relay, NO
  • Switching output 1: Relay, NC
  • Response time: 20 ms
  • Connection: Screw terminal
  • Dimensions: 22.5 mm x 99 mm x 113.6 mm
  • Operating ambient temperature: 0 to 55 °C
  • Certifications: TÜV Süd, c UL US


Product

Manufacturer Material ID -
MSI-MC310
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85423990
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151703

Technical Specification

-
Leuze
Number of outputs, signalling function, delayed, with contact -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
With approval for T‹V -
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
0
Voltage type for actuating -
AC/DC
With approval for TÜV -
Depth -
113.6 Millimetre
Evaluation inputs -
Other
Height -
99 Millimetre
Model -
Basic device
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, semiconductors -
2
Number of outputs, safety related, undelayed, with contact -
2
Number of outputs, signalling function, delayed, semiconductors -
0
Number of outputs, signalling function, undelayed, with contact -
1
Operating voltage at AC 50 Hz -
24 Volt
Operating voltage at AC 60 Hz -
24 Volt
Performance level acc. to EN ISO 13849-1 -
Level e
Power consumption -
4.6 Watt
Rail mounting possible -
Rated switch current -
3 Ampere
Release-delay -
0.02 Second
SIL according to IEC 61508 -
3
Stop category acc. to IEC 60204 -
0
Suitable for monitoring of optoelectronic protection equipment -
Supply voltage AC 50 Hz -
24 Volt
Supply voltage AC 60 Hz -
24 Volt
Type of control voltage 1 -
AC
Type of electric connection -
Clip connection
Type of safety acc. IEC 61496-1 -
None
Voltage type (operating voltage) -
AC/DC
Voltage type of supply voltage -
AC/DC
Width -
22.5 Millimetre
With feedback circuit -
With start input -

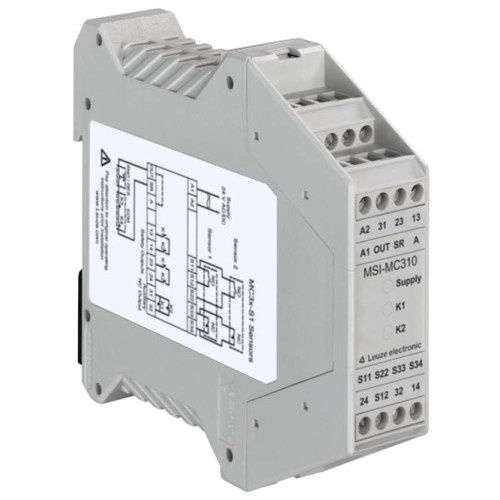

Thumbnail of product picture -
