53800210

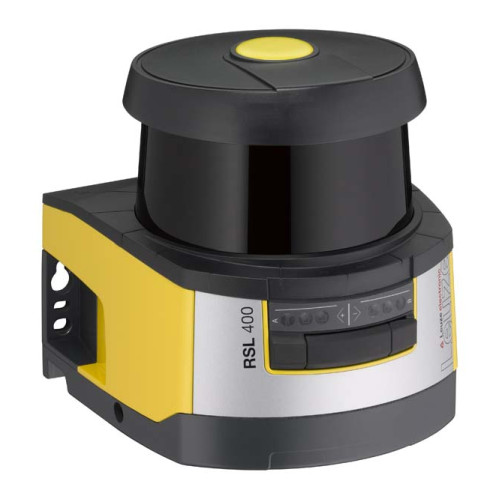

The Safety laser scanner from . Type: 3, IEC/EN 61496; SIL: 2, IEC 61508; Performance Level (PL): d, EN ISO 13849-1; Scanning angl

Manufacturer's No: RSL420-M/CU416-5     Manufacturer: Leuze
The Safety laser scanner from . Type: 3, IEC/EN 61496; SIL: 2, IEC 61508; Performance Level (PL): d, EN ISO 13849-1; Scanning angle: 270 °; Number of field pairs, reversible: 10; Number of protectiv

Availability Back Order

£5,211.00
  • Type: Type 3, IEC/EN 61496
  • SIL: SIL 2, IEC 61508
  • Performance Level (PL): PL d, EN ISO 13849-1
  • Scanning angle: 270 degrees
  • Resolution of protective field: Adjustable from 30 mm to 150 mm
  • Number of field pairs: 10, switchable
  • Number of protective functions: 1
  • Operating range: 0 to 4.5 meters
  • Range of warning field: 0 to 20 meters
  • Supply voltage: 24V DC, -30% to +20%

Read more

  • Safety-related switching outputs (OSSDs): 2, Transistor, PNP
  • Connection 1: Cable, 16-wire, 5000 mm, PVC
  • Connection 2: Connector, M12, 4-pin
  • Dimensions: 140 mm x 149 mm x 140 mm

Accessories

Spare part

Others



Product

Manufacturer Material ID -
RSL420-M/CU416-5
Net Weight -
4.03kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Leuze
Number of semiconductor outputs with signalling function -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Max. output current at protected output -
- Milliampere
Time of reaction -
- Millisecond
Rated control supply voltage Us at DC -
208 Volt
Detection power for test bodies -
1 Millimetre
Scan angle -
270 Degrees
Transmission range of the measuring range -
50 Metre
Ambient temperature -
0 Degrees celsius
Height of sensor -
149 Millimetre
Laser protection class -
Class 1
Length of sensor -
140 Millimetre
Number of protected semiconductor outputs -
2
Number of safety fields -
1
Operation agent-safety class -
Safety class 3
Reaction time -
80 Millisecond
Scanning interval -
0.09 Hertz
Switching voltage of OSSD at state "high" -
20.8 Volt
Transmission range of the alert field -
0 Metre
Transmission range of the safety field -
0 Metre
Type of electric connection -
Cable
Type of safety acc. IEC 61496-1 -
3
Type of switching output of the OSSD -
PNP
Voltage type -
DC
Wavelength of the sensor -
905 Nanometre
Width sensor -
140 Millimetre
With configurable message output -
Thumbnail of product picture -
Leuze

Availability Back Order

£5,211.00
