Safety relay Category: Up to 4 (depending on the category of the upstream protective device), EN ISO 13849; Contacts (NO contact/N

Manufacturer's No: MSI-RM2B-01     Manufacturer: Leuze
Safety relay Category: Up to 4 (depending on the category of the upstream protective device), EN ISO 13849; Contacts (NO contact/NC contact): 2 NO contacts / 1 NC contact; Number of safety-related sw

Availability Back Order

£123.00
  • Signal conversion for electronic safety outputs on potential-free relay contacts
  • Feedback path for EDM integration
  • Automatic restart feature
  • SIL 3 according to IEC 61508
  • Performance Level e according to EN ISO 13849-1
  • Up to 4 categories (depending on upstream protective device category) according to EN ISO 13849-1
  • 2 NO contacts and 1 NC contact
  • 2 safety-related switching outputs (OSSDs)
  • Safety-related switching output 1: Relay, NO
  • Safety-related switching output 2: Relay, NO

Read more

  • Screw terminal connection
  • Dimensions: 17.5 mm x 99 mm x 114.1 mm
  • Operating ambient temperature: 0 to 50 °C
  • Certifications: TÜV NRTL US, c UL US


Product

Manufacturer Material ID -
MSI-RM2B-01
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
Leuze
Release-delay -
- Second
Number of outputs, signalling function, delayed, with contact -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
With approval for T‹V -
Performance level acc. EN ISO 13849-1 -
UN
Stop category acc. IEC 60204 -
UN
Voltage type for actuating -
UN
Category according to EN 954-1 -
4
With approval for TÜV -
Depth -
114.1 Millimetre
Evaluation inputs -
Other
Height -
99 Millimetre
Model -
Basic device
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, semiconductors -
2
Number of outputs, safety related, undelayed, with contact -
2
Number of outputs, signalling function, delayed, semiconductors -
0
Number of outputs, signalling function, undelayed, with contact -
1
Operating voltage at DC -
24 Volt
Performance level acc. to EN ISO 13849-1 -
Level e
Power consumption -
2.5 Watt
Rail mounting possible -
SIL according to IEC 61508 -
3
Stop category acc. to IEC 60204 -
Other
Suitable for monitoring of optoelectronic protection equipment -
Supply voltage DC -
24 Volt
Type of control voltage 1 -
AC
Type of electric connection -
Clip connection
Type of safety acc. IEC 61496-1 -
None
Voltage type (operating voltage) -
DC
Voltage type of supply voltage -
DC
Width -
17.5 Millimetre
With feedback circuit -
With start input -

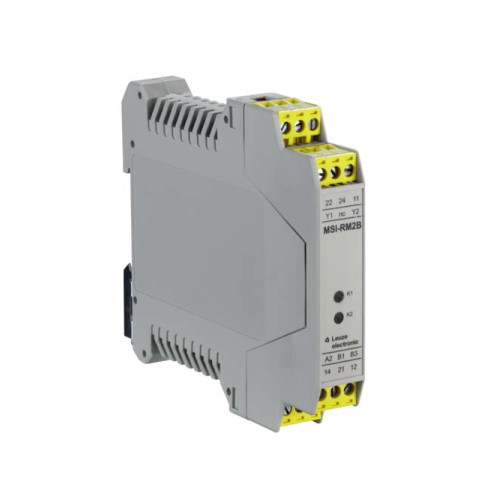

Thumbnail of product picture -
Leuze

Availability Back Order

£123.00
