66533100

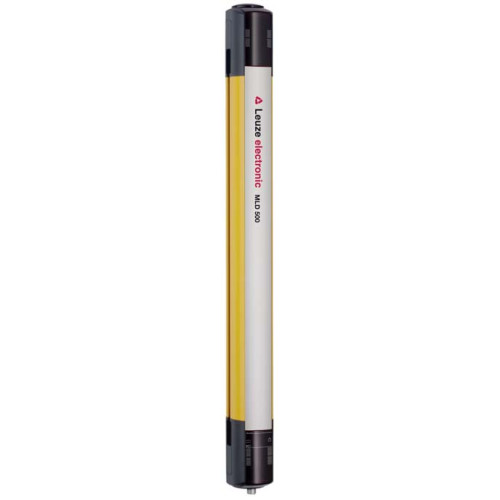

Multiple light beam safety device receiver Type: 4, IEC/EN 61496; SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Ca

Manufacturer's No: MLD510-R2     Manufacturer: Leuze
Multiple light beam safety device receiver Type: 4, IEC/EN 61496; SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; Number of beams: 2 Piece(s); Beam spacing: 5

Availability Back Order

£935.00
  • Type: 4, IEC/EN 61496
  • SIL: 3, IEC 61508
  • Performance Level (PL): e, EN ISO 13849-1
  • Category: 4, EN ISO 13849
  • Number of beams: 2 pieces
  • Beam spacing: 500 mm
  • Response time: 25 ms
  • Connection: Connector, M12, Metal, 5-pin
  • Dimensions: 52 mm x 600 mm x 64.7 mm

Accessories

Others



Product

Manufacturer Material ID -
MLD510-R2
Net Weight -
1.40kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Leuze
Number of semiconductor outputs with signalling function -
-
Type of interface for safety communication -
UN
Transmission range of the safety field -
- Metre
Wavelength of the sensor -
- Nanometre
Detection power for test bodies -
500 Millimetre
Time of reaction -
25 Millisecond
Ambient temperature -
-30 Degrees celsius
Beam spacing -
500 Millimetre
Detection capability for test bodies -
500 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
600 Millimetre
Length -
64.7 Millimetre
Max. output current at protected output -
380 Milliampere
Model -
Transmitter and receiver separated
Number of beams -
2
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
2
Operation agent-safety class -
Safety class 3
Reaction time -
25 Millisecond
Scope of delivery of the one-way system -
Receiver
Switching voltage of OSSD at state "high" -
18.2 Volt
Type of electric connection -
Connector M12
Type of safety acc. IEC 61496-1 -
4
Type of switching output of the OSSD -
PNP
Voltage type -
DC
Width -
52 Millimetre
With beam coding -
Thumbnail of product picture -
Leuze

Availability Back Order

£935.00
