787-1675

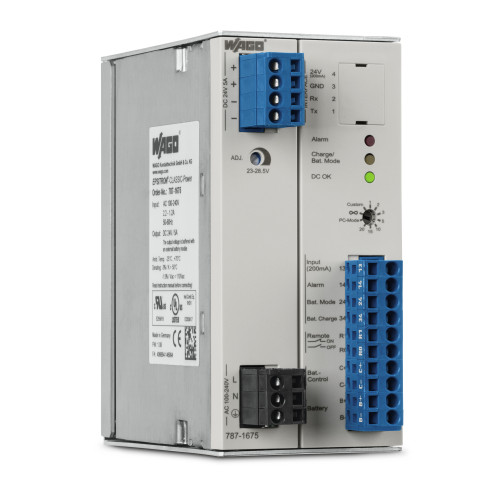

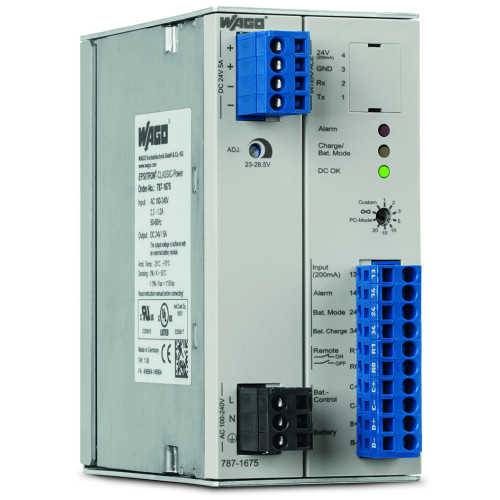

Switched-mode power supply with integrated charger and controller, Classic, 1-phase, 24 VDC output v

Manufacturer's No: 787-1675     Manufacturer: WAGO
Switched-mode power supply with integrated charger and controller, Classic, 1-phase, 24 VDC output v

Availability Back Order

£247.384
List Price £309.23
  • Switched-mode power supply with integrated charger and controller
  • Classic design
  • 1-phase operation
  • Output voltage: 24 VDC
  • Output current: 5 A
  • Communication capability
  • Size: 10.00 mm²

Accessories



Product

Manufacturer Material ID -
787-1675
Net Weight -
0.85kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
3rd secondary output voltage -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
1st secondary output voltage -
23 Volt
2nd secondary output voltage -
18.5 Volt
Degree of protection (IP rating) -
IP20
Depth -
135.5 Millimetre
Height -
127 Millimetre
Max. output current 1 -
5 Ampere
Nominal value output current 1 -
5 Ampere
Nominal value output voltage 1 -
24 Volt
Power output -
120 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
85 Volt
Rated supply voltage at AC 60 Hz -
85 Volt
Rated supply voltage at DC -
120 Volt
Secondary voltage adjustable -
Stabilized -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
AC/DC
Width -
60 Millimetre
Width in number of modular spacings -
4

Availability Back Order

£247.384
List Price £309.23
