787-1102

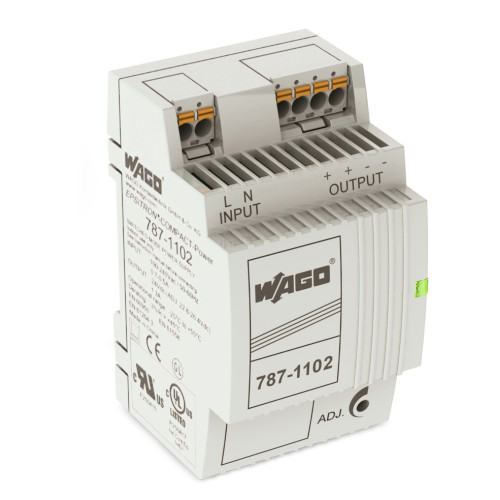

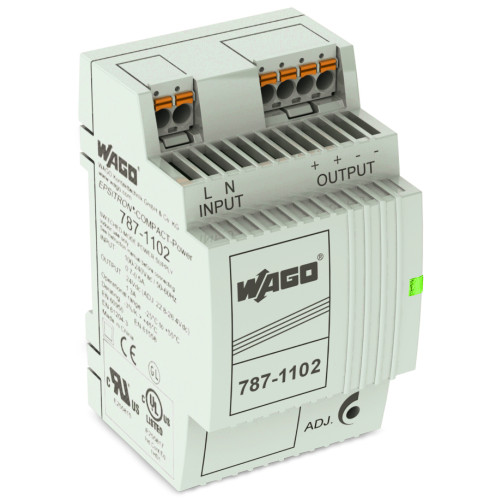

EPSITRON COMPACT power supply 1-phase 24 VDC

Manufacturer's No: 787-1102     Manufacturer: WAGO
EPSITRON COMPACT power supply 1-phase 24 VDC

Availability Back Order

£71.53
  • Switched-mode power supply
  • Compact design
  • 1-phase
  • 24 VDC output voltage
  • 1.3 A output current
  • DC-OK LED indicator

Accessories

Gripping Plate, 3- To 4-Pole Suitable For 5 mm Pin Spacing Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2092-1601
Price £0.10
Back Order


Product

Manufacturer Material ID -
787-1102
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
1st secondary output voltage -
22.8 Volt
Degree of protection (IP rating) -
IP20
Depth -
55 Millimetre
Height -
89 Millimetre
Max. output current 1 -
1.3 Ampere
Modular version -
Nominal value output current 1 -
1.3 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
31 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
85 Volt
Rated supply voltage at AC 60 Hz -
85 Volt
Rated supply voltage at DC -
120 Volt
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
AC/DC
Width -
54 Millimetre
Width in number of modular spacings -
3
