6EP34347SB003AX0

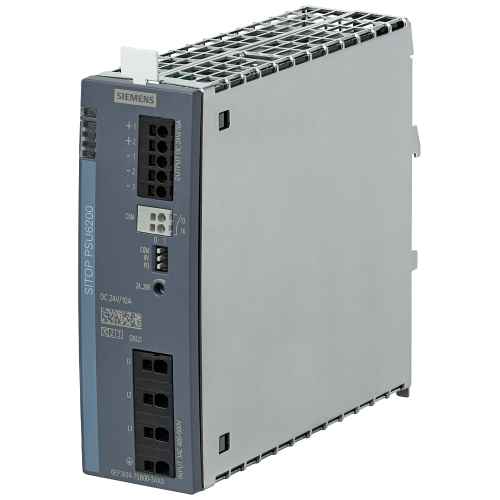

Power supply SITOP PSU6200, 3-phase 24 V DC/10 A

Manufacturer's No: 6EP3434-7SB00-3AX0     Manufacturer: Siemens
Power supply SITOP PSU6200, 3-phase 24 V DC/10 A

Availability In Stock

£225.00
  • Stabilized power supply: SITOP PSU6200
  • Input voltage: 400 - 500 V AC
  • Output voltage: 24 V DC
  • Output current: 10 A
  • Diagnostics interface included

Accessories



Product

Manufacturer Material ID -
6EP3434-7SB00-3AX0
Net Weight -
1.17kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
AT
UNSPSC -
32121704

Technical Specification

Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
45 Millimetre
Degree of protection (IP) -
IP20
Width -
45 Millimetre
Height -
135 Millimetre
Depth -
155 Millimetre
Recess height -
225 Millimetre
Recess width -
45 Millimetre
Modular version -
Voltage type of supply voltage -
AC/DC
Power output -
240 Watt
Output voltage stabilized -
Type of electric connection -
Spring clamp connection
Rail mounting possible -
Stabilized -
Degree of protection (IP rating) -
IP20
1st secondary output voltage -
24 Volt
Secondary voltage adjustable -
Short-circuit-proof -
Max. output current 1 -
10 Ampere
Nominal value output voltage 1 -
24 Volt
Nominal value output current 1 -
10 Ampere

Availability In Stock

£225.00
