6EP43467RB000AX0

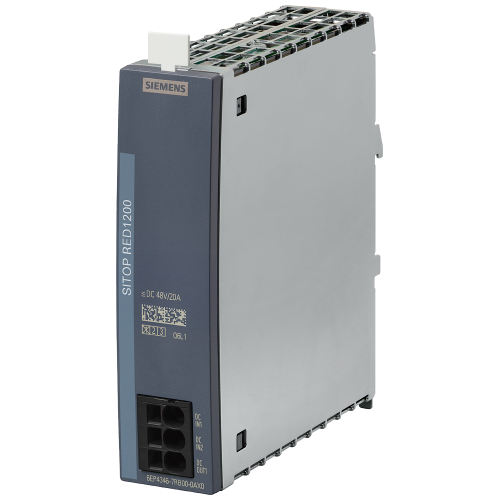

Redundancy module SITOP RED1200, 12 V DC, 24 V DC, 48 V DC

Manufacturer's No: 6EP4346-7RB00-0AX0     Manufacturer: Siemens
Redundancy module SITOP RED1200, 12 V DC, 24 V DC, 48 V DC

View 3D

Availability In Stock

£87.00
  • Input/output: 24/48 V DC, 20 A
  • Suitable for decoupling two SITOP power supplies
  • Max output current: 10 A per power supply

Accessories



Product

Manufacturer Material ID -
6EP4346-7RB00-0AX0
Net Weight -
0.67kg

Additional Product Information

Commodity Code -
85049099
Country of Origin -
AT
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Power consumption -
- Voltampere
Width in number of modular spacings -
-
Power output -
- Watt
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 1 -
- Ampere
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
35 Millimetre
Degree of protection (IP) -
IP20
Width -
35 Millimetre
Height -
135 Millimetre
Depth -
125 Millimetre
Recess height -
225 Millimetre
Recess width -
35 Millimetre
Modular version -
Voltage type of supply voltage -
DC
Type of electric connection -
Spring clamp connection
Rail mounting possible -
Degree of protection (IP rating) -
IP20
1st secondary output voltage -
12 Volt
Rated supply voltage at DC -
12 Volt
Nominal value output voltage 1 -
24 Volt
Nominal value output current 1 -
20 Ampere

Availability In Stock

£87.00
