6EP33337SB000AX0

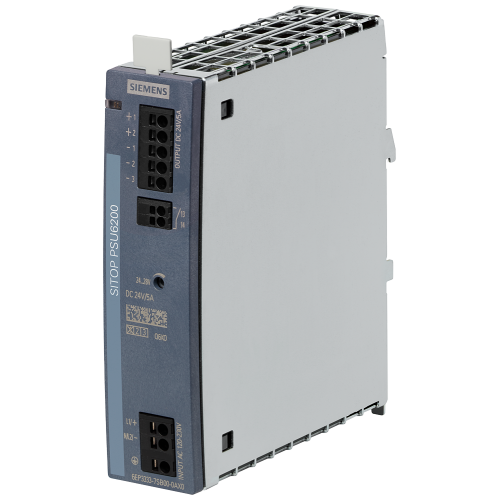

Sitop PSU6200, input 120-230V UC - output 24V/5.0amp DC

Manufacturer's No: 6EP3333-7SB00-0AX0     Manufacturer: Siemens
Sitop PSU6200, input 120-230V UC - output 24V/5.0amp DC

View 3D

Availability In Stock

£134.00
  • Power Supply Model: SITOP PSU6200
  • Input Voltage: 120 - 230 V AC, 120 - 240 V DC
  • Output Voltage: 24 V DC
  • Output Current: 5 A

Accessories



Product

Manufacturer Material ID -
6EP3333-7SB00-0AX0
Net Weight -
0.81kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
AT
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
35 Millimetre
Degree of protection (IP) -
IP20
Width -
35 Millimetre
Height -
135 Millimetre
Depth -
125 Millimetre
Recess height -
225 Millimetre
Recess width -
35 Millimetre
Modular version -
Voltage type of supply voltage -
AC/DC
Power output -
120 Watt
Output voltage stabilized -
Type of electric connection -
Spring clamp connection
Rail mounting possible -
Stabilized -
Degree of protection (IP rating) -
IP20
1st secondary output voltage -
24 Volt
Secondary voltage adjustable -
Rated supply voltage at AC 50 Hz -
240 Volt
Rated supply voltage at AC 60 Hz -
120 Volt
Rated supply voltage at DC -
120 Volt
Short-circuit-proof -
Max. output current 1 -
5 Ampere
Nominal value output voltage 1 -
24 Volt
Nominal value output current 1 -
5 Ampere

Availability In Stock

£134.00
