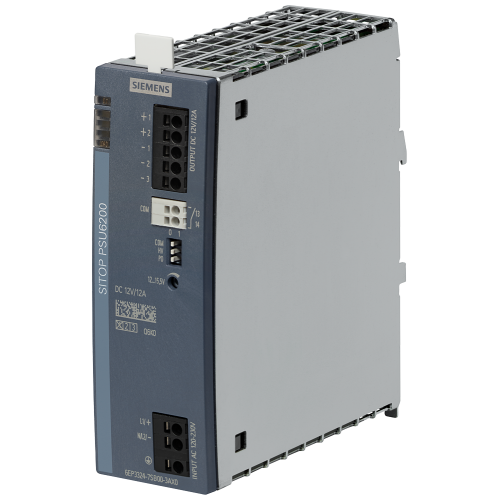

Sitop PSU6200, input 120-230V UC - output 12V/12.0 amp DC

6EP33247SB003AX0

Sitop PSU6200, input 120-230V UC - output 12V/12.0 amp DC

Produced by Siemens

Availability Back Order

Price - £234.00
SITOP PSU6200 12 V/12 A Stabilized power supply Input: 120 - 230 V AC, (120 - 240 V DC) Output: 12 V DC/12 A with diagnostics interface
No alternatives available for this product.
Product
Manufacturer Material ID -
6EP3324-7SB00-3AX0
Net Weight -
0.90kg
Additional Product Information
Commodity Code -
85044090
Country of Origin -
AT
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
yes
UNSPSC -
32121704
Technical Specification
Built-in height -
225 Millimetre
Built-in width -
45 Millimetre
Width -
45 Millimetre
Height -
135 Millimetre
Depth -
125 Millimetre
Recess height -
225 Millimetre
Recess width -
45 Millimetre
Power output -
144 Watt
1st secondary output voltage -
12 Volt
Rated supply voltage at AC 50 Hz -
240 Volt
Rated supply voltage at AC 60 Hz -
120 Volt
Rated supply voltage at DC -
110 Volt
Max. output current 1 -
12 Ampere
Nominal value output voltage 1 -
12 Volt
Nominal value output current 1 -
12 Ampere
