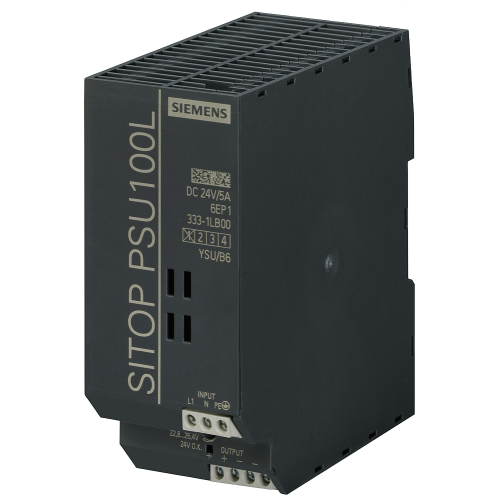

Power supply SITOP PSU100L, single-phase 24 V DC/5 A

6EP13331LB00

Power supply SITOP PSU100L, single-phase 24 V DC/5 A

Produced by Siemens

Availability In Stock

Price - £35.90
List Price £91.00
SITOP PSU100L 24 V/5 A Stabilized power supply input: 120/230 V AC, output: 24 V DC/5 A The SITOP lite single-phase power supplies are designed to meet basic requirements in industrial environments and offer all important functions at a favorable price. The wide-range input with manual selection enables connection to many different single-phase supply systems. Thanks to their slim design, the power supply units, require little space on the mounting rail, and their high degree of efficiency ensures low thermal losses in the control cabinet. To further increase 24 V availability, the SITOP litepower supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.
No alternatives available for this product.
Product
Manufacturer Material ID -
6EP1333-1LB00
Net Weight -
0.50kg
Additional Product Information
Commodity Code -
85044090
Country of Origin -
RO
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
None
RoHs Compliance -
Yes
UNSPSC -
32121704
Technical Specification
Built-in height -
225 Millimetre
Built-in width -
50 Millimetre
Width -
50 Millimetre
Height -
125 Millimetre
Depth -
120 Millimetre
Recess height -
225 Millimetre
Recess width -
50 Millimetre
Power output -
120 Watt
1st secondary output voltage -
24 Volt
Rated supply voltage at AC 50 Hz -
230 Volt
Rated supply voltage at AC 60 Hz -
120 Volt
Max. output current 1 -
5 Ampere
Nominal value output voltage 1 -
24 Volt
Nominal value output current 1 -
5 Ampere
