6EP13325BA10

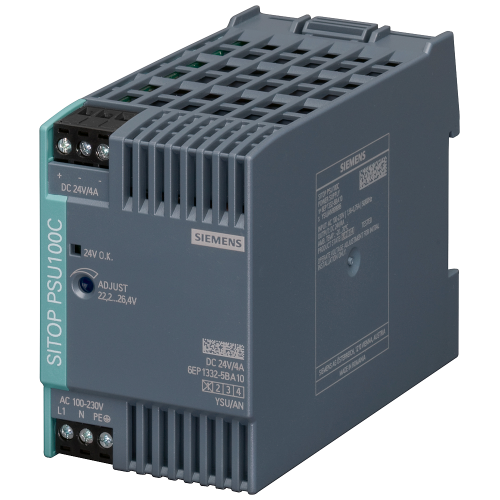

Sitop Compact, input 120-230V 1ph /110-300V DC - output 24V/4.0 amp DC

Manufacturer's No: 6EP1332-5BA10     Manufacturer: Siemens
Sitop Compact, input 120-230V 1ph /110-300V DC - output 24V/4.0 amp DC

View 3D

Availability In Stock

£120.00
  • Stabilized power supply: SITOP PSU100C
  • Input voltage: 120-230 V AC or 110-300 V DC
  • Output voltage: 24 V DC
  • Output current: 4 A

Accessories



Product

Manufacturer Material ID -
6EP1332-5BA10
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
RO
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
180 Millimetre
Built-in width -
52.5 Millimetre
Degree of protection (IP) -
IP20
Width -
52.5 Millimetre
Height -
80 Millimetre
Depth -
100 Millimetre
Recess height -
180 Millimetre
Recess width -
52.5 Millimetre
Modular version -
Voltage type of supply voltage -
AC/DC
Power output -
96 Watt
Output voltage stabilized -
Type of electric connection -
Screw connection
Rail mounting possible -
Stabilized -
Degree of protection (IP rating) -
IP20
1st secondary output voltage -
24 Volt
Secondary voltage adjustable -
Rated supply voltage at AC 50 Hz -
230 Volt
Rated supply voltage at AC 60 Hz -
100 Volt
Short-circuit-proof -
Max. output current 1 -
4 Ampere
Nominal value output voltage 1 -
24 Volt
Nominal value output current 1 -
4 Ampere

Availability In Stock

£120.00
