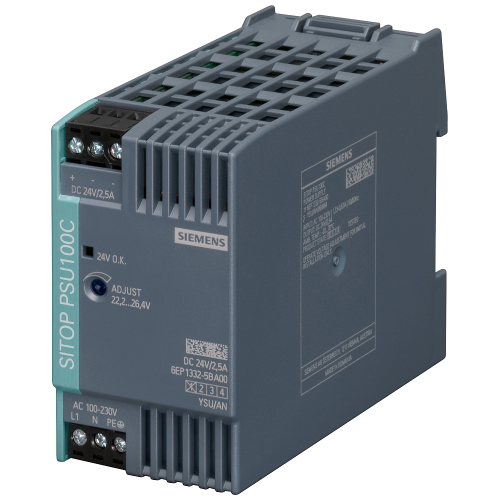

Sitop Compact, input 120-230V 1ph/110-300V DC - output 24V/2.5 amp DC

6EP13325BA00

Sitop Compact, input 120-230V 1ph/110-300V DC - output 24V/2.5 amp DC

Produced by Siemens

Availability In Stock

Price - £81.00
SITOP PSU100C 24 V/2.5 A Stabilized power supply input: 120-230 V AC (DC 110-300 V) output: DC 24 V/2,5 A
No alternatives available for this product.
Product
Manufacturer Material ID -
6EP1332-5BA00
Net Weight -
0.26kg
Additional Product Information
Commodity Code -
85044090
Country of Origin -
RO
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704
Technical Specification
Built-in height -
180 Millimetre
Built-in width -
45 Millimetre
Width -
45 Millimetre
Height -
80 Millimetre
Depth -
100 Millimetre
Recess height -
180 Millimetre
Recess width -
45 Millimetre
Power output -
60 Watt
1st secondary output voltage -
24 Volt
Rated supply voltage at AC 50 Hz -
230 Volt
Rated supply voltage at AC 60 Hz -
100 Volt
Max. output current 1 -
2.5 Ampere
Nominal value output voltage 1 -
24 Volt
Nominal value output current 1 -
2.5 Ampere
