6EP34368SB002AY0

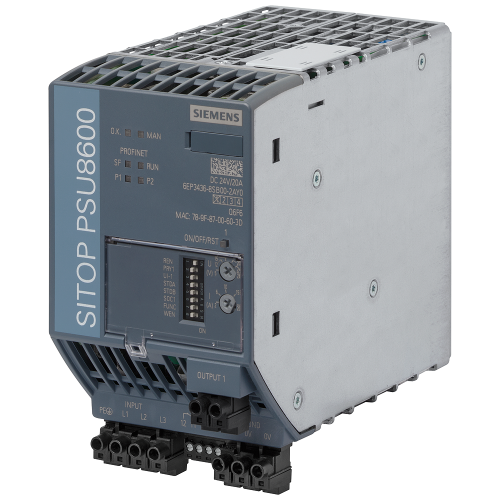

Sitop PSU8600 Base Unit - input 400-500V 3ph - output 24V/20.0 amp DC - P/Net

Manufacturer's No: 6EP3436-8SB00-2AY0     Manufacturer: Siemens
Sitop PSU8600 Base Unit - input 400-500V 3ph - output 24V/20.0 amp DC - P/Net

View 3D

Availability In Stock

£509.00
  • Power Supply: SITOP PSU8600
  • Input Voltage: 400-500 V AC
  • Output Voltage: 24 V DC
  • Output Current: 20 A
  • Integrated Web Server
  • Integrated OPC UA Server

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order


Product

Manufacturer Material ID -
6EP3436-8SB00-2AY0
Net Weight -
2.06kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
AT
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
80 Millimetre
Degree of protection (IP) -
IP20
Width -
80 Millimetre
Height -
125 Millimetre
Depth -
150 Millimetre
Recess height -
225 Millimetre
Recess width -
80 Millimetre
Modular version -
Voltage type of supply voltage -
AC
Power output -
480 Watt
Output voltage stabilized -
Type of electric connection -
Screw connection
Rail mounting possible -
Stabilized -
Degree of protection (IP rating) -
IP20
1st secondary output voltage -
5 Volt
Secondary voltage adjustable -
Rated supply voltage at AC 50 Hz -
400 Volt
Rated supply voltage at AC 60 Hz -
500 Volt
Short-circuit-proof -
Max. output current 1 -
20 Ampere
Nominal value output voltage 1 -
24 Volt
Nominal value output current 1 -
20 Ampere

Availability In Stock

£509.00
