6EP33368MB002CY0

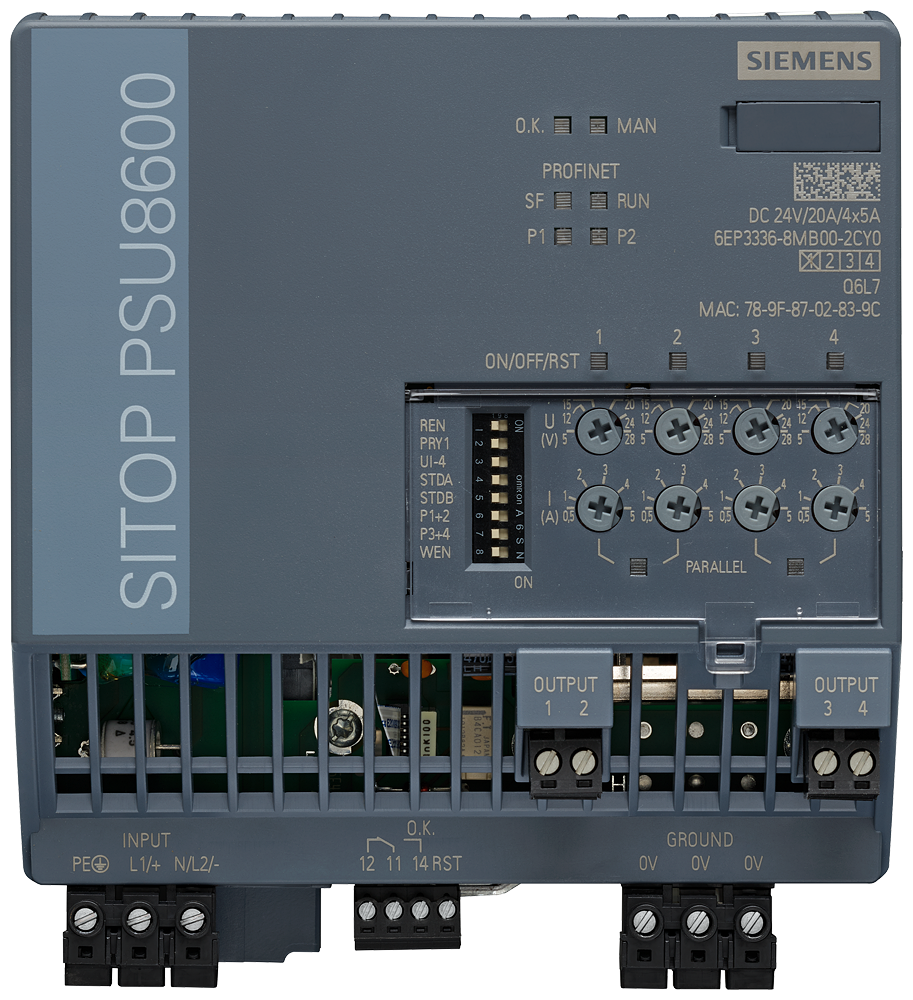

Sitop PSU8600 Base Unit - input 100-240V 1ph - 4 x output 5.0 amp (20amp) DC -P/Net

Manufacturer's No: 6EP3336-8MB00-2CY0     Manufacturer: Siemens
Sitop PSU8600 Base Unit - input 100-240V 1ph -  4 x output 5.0 amp (20amp) DC -P/Net

Availability In Stock

£735.00
  • Power supply model: SITOP PSU8600
  • Input voltage: 100-240 V AC
  • Output voltage: 24 V DC
  • Output current: 20 A (main channel), 4 x 5 A (additional channels)
  • Integrated web server for remote access
  • Integrated OPC UA server for industrial communication

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order


Product

Manufacturer Material ID -
6EP3336-8MB00-2CY0
Net Weight -
2.30kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
AT
UNSPSC -
32121704

Technical Specification

Power consumption -
- Voltampere
Width in number of modular spacings -
-
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
125 Millimetre
Degree of protection (IP) -
IP20
Width -
125 Millimetre
Height -
125 Millimetre
Depth -
150 Millimetre
Recess height -
225 Millimetre
Recess width -
125 Millimetre
Modular version -
Voltage type of supply voltage -
AC/DC
Power output -
480 Watt
Output voltage stabilized -
Type of electric connection -
Screw connection
Rail mounting possible -
Stabilized -
Degree of protection (IP rating) -
IP20
1st secondary output voltage -
5 Volt
2nd secondary output voltage -
5 Volt
3rd secondary output voltage -
5 Volt
Secondary voltage adjustable -
Rated supply voltage at AC 50 Hz -
230 Volt
Rated supply voltage at AC 60 Hz -
120 Volt
Rated supply voltage at DC -
110 Volt
Short-circuit-proof -
Max. output current 1 -
20 Ampere
Max. output current 2 -
5 Ampere
Max. output current 3 -
5 Ampere
Nominal value output voltage 1 -
24 Volt
Nominal value output voltage 2 -
24 Volt
Nominal value output voltage 3 -
24 Volt
Nominal value output current 1 -
20 Ampere
Nominal value output current 2 -
5 Ampere
Nominal value output current 3 -
5 Ampere

Availability In Stock

£735.00
