6EP44378XB000CY0

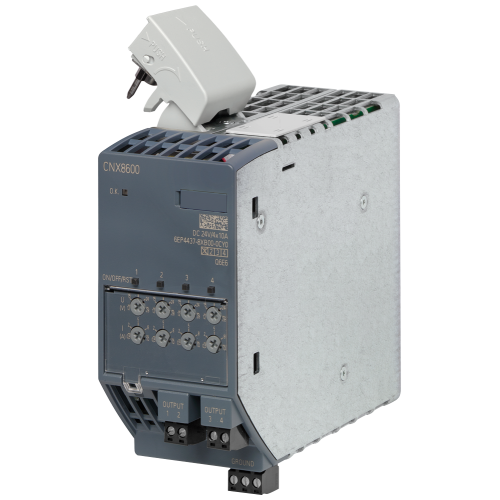

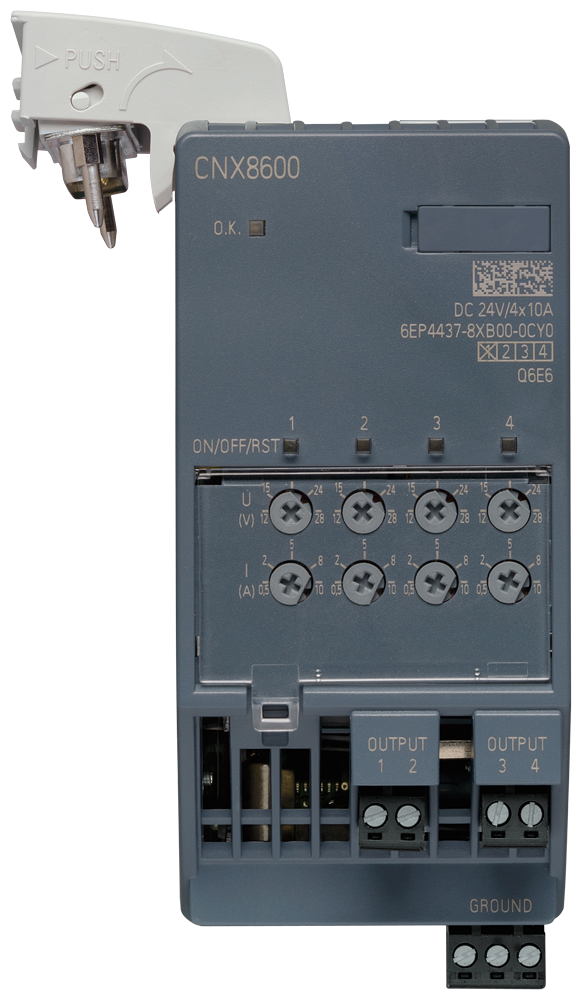

CNX8600 -Expansion Unit - 4 x output 10.0 amp max 4 per PSU8600

Manufacturer's No: 6EP4437-8XB00-0CY0     Manufacturer: Siemens

Availability In Stock

£264.00

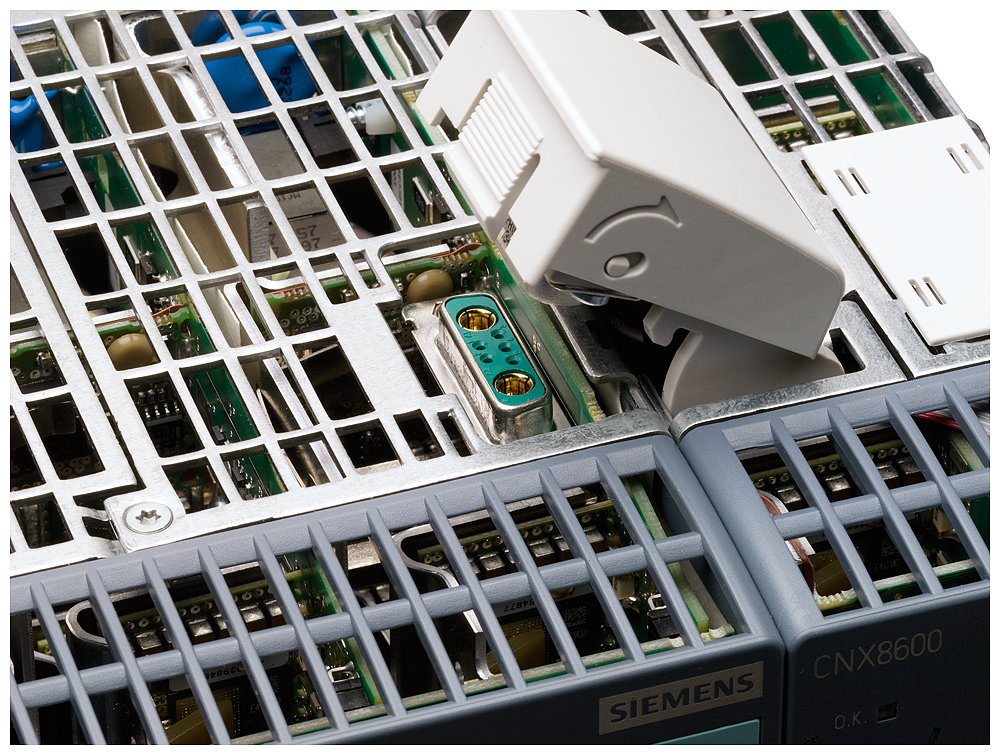

  • Expansion module for PSU8600
  • Output: 24 V DC, 4 x 10 A

Accessories



Product

Manufacturer Material ID -
6EP4437-8XB00-0CY0
Net Weight -
1.42kg

Additional Product Information

Commodity Code -
85049099
Country of Origin -
AT
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Power consumption -
- Voltampere
Width in number of modular spacings -
-
Voltage type of supply voltage -
UN
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
60 Millimetre
Degree of protection (IP) -
IP20
Width -
60 Millimetre
Height -
125 Millimetre
Depth -
150 Millimetre
Recess height -
225 Millimetre
Recess width -
60 Millimetre
Modular version -
Power output -
960 Watt
Output voltage stabilized -
Type of electric connection -
Screw connection
Rail mounting possible -
Stabilized -
Degree of protection (IP rating) -
IP20
1st secondary output voltage -
5 Volt
2nd secondary output voltage -
5 Volt
3rd secondary output voltage -
5 Volt
Secondary voltage adjustable -
Short-circuit-proof -
Max. output current 1 -
40 Ampere
Max. output current 2 -
10 Ampere
Max. output current 3 -
10 Ampere
Nominal value output voltage 1 -
24 Volt
Nominal value output voltage 2 -
24 Volt
Nominal value output voltage 3 -
24 Volt
Nominal value output current 1 -
40 Ampere
Nominal value output current 2 -
10 Ampere
Nominal value output current 3 -
10 Ampere

Availability In Stock

£264.00
