6EP34378MB002CY0

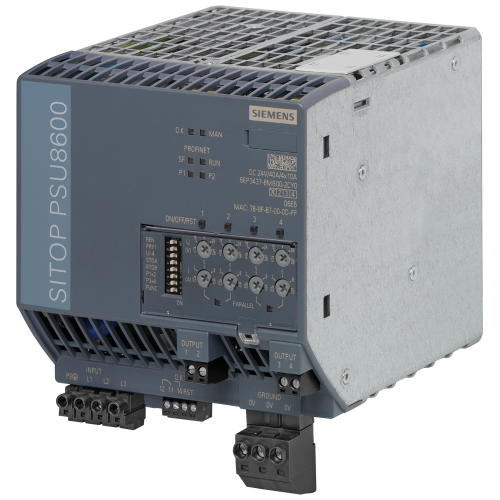

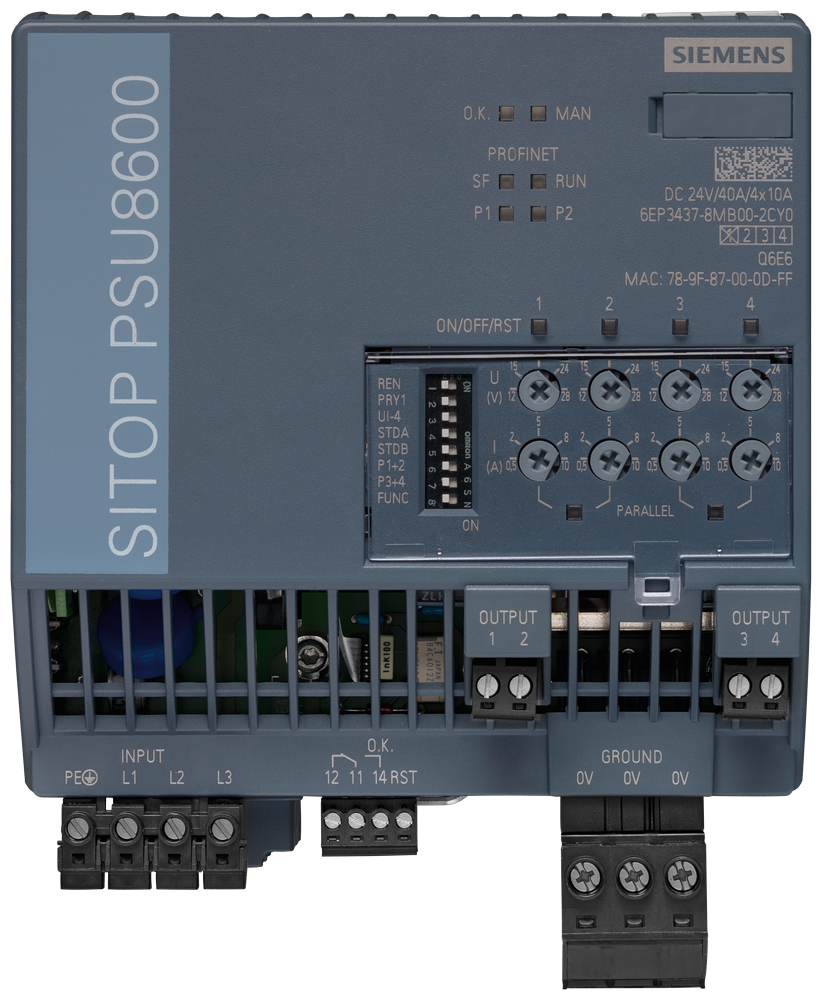

Sitop PSU8600 Base Unit - input 400-500V 3ph - 4 x output@24V/10.0 amp (40amp) -P/Net

Manufacturer's No: 6EP3437-8MB00-2CY0     Manufacturer: Siemens

Availability In Stock

£831.00
  • Power supply: SITOP PSU8600
  • Input: 400-500 V 3 AC
  • Output: 24 V DC, 40 A total, 4 channels of 10 A each
  • Features integrated web server
  • Features integrated OPC UA server

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order


Product

Manufacturer Material ID -
6EP3437-8MB00-2CY0
Net Weight -
2.97kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
AT
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Power consumption -
- Voltampere
Width in number of modular spacings -
-
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
125 Millimetre
Degree of protection (IP) -
IP20
Width -
125 Millimetre
Height -
125 Millimetre
Depth -
150 Millimetre
Recess height -
225 Millimetre
Recess width -
125 Millimetre
Modular version -
Voltage type of supply voltage -
AC
Power output -
960 Watt
Output voltage stabilized -
Type of electric connection -
Screw connection
Rail mounting possible -
Stabilized -
Degree of protection (IP rating) -
IP20
1st secondary output voltage -
5 Volt
2nd secondary output voltage -
5 Volt
3rd secondary output voltage -
5 Volt
Secondary voltage adjustable -
Rated supply voltage at AC 50 Hz -
400 Volt
Rated supply voltage at AC 60 Hz -
500 Volt
Short-circuit-proof -
Max. output current 1 -
40 Ampere
Max. output current 2 -
10 Ampere
Max. output current 3 -
10 Ampere
Nominal value output voltage 1 -
24 Volt
Nominal value output voltage 2 -
24 Volt
Nominal value output voltage 3 -
24 Volt
Nominal value output current 1 -
40 Ampere
Nominal value output current 2 -
10 Ampere
Nominal value output current 3 -
10 Ampere
