6EP34478SB000AY0

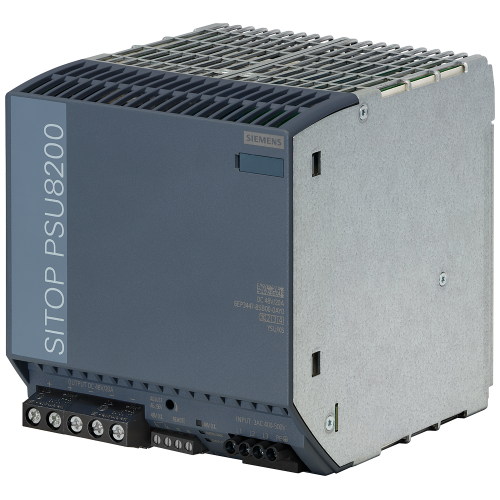

Sitop PSU8200, input 400-500V 3ph - output 48V/20.0 amp DC

Manufacturer's No: 6EP3447-8SB00-0AY0     Manufacturer: Siemens
Sitop PSU8200, input 400-500V 3ph - output 48V/20.0 amp DC

View 3D

Availability Back Order

£528.00
  • Stabilized power supply: SITOP PSU8200
  • Input voltage: 400-500 V AC
  • Output voltage: 48 V DC
  • Output current: 20 A
  • Ideal for applications requiring a stable 48 V power supply

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order


Product

Manufacturer Material ID -
6EP3447-8SB00-0AY0
Net Weight -
3.30kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
RO
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
135 Millimetre
Degree of protection (IP) -
IP20
Width -
135 Millimetre
Height -
145 Millimetre
Depth -
150 Millimetre
Recess height -
225 Millimetre
Recess width -
135 Millimetre
Modular version -
Voltage type of supply voltage -
AC
Power output -
960 Watt
Output voltage stabilized -
Type of electric connection -
Screw connection
Rail mounting possible -
Stabilized -
Degree of protection (IP rating) -
IP20
1st secondary output voltage -
48 Volt
Secondary voltage adjustable -
Rated supply voltage at AC 50 Hz -
400 Volt
Rated supply voltage at AC 60 Hz -
500 Volt
Short-circuit-proof -
Max. output current 1 -
20 Ampere
Nominal value output voltage 1 -
48 Volt
Nominal value output current 1 -
20 Ampere

Availability Back Order

£528.00
