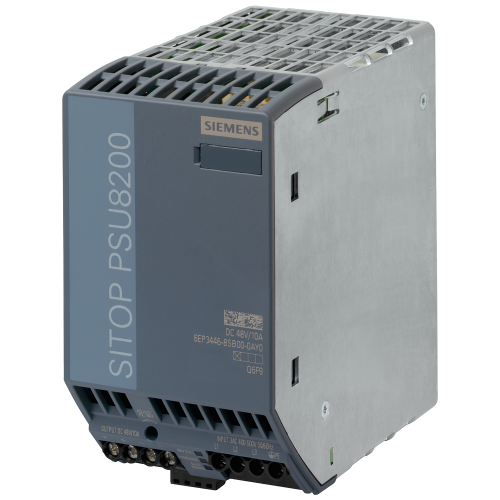

Sitop PSU8200, input 400-500V 3ph - output 48V/10.0 amp DC

6EP34468SB000AY0

Sitop PSU8200, input 400-500V 3ph - output 48V/10.0 amp DC

Produced by Siemens

Availability Back Order

Price - £316.00
SITOP PSU8200 48 V/10 A Stabilized power supply input: 3 AC 400-500 V output: 48 V DC/10 A
Product
Manufacturer Material ID -
6EP3446-8SB00-0AY0
Net Weight -
1.15kg
Additional Product Information
Commodity Code -
85044090
Country of Origin -
AT
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704
Technical Specification
Built-in height -
225 Millimetre
Built-in width -
70 Millimetre
Width -
70 Millimetre
Height -
125 Millimetre
Depth -
125 Millimetre
Recess height -
225 Millimetre
Recess width -
70 Millimetre
Power output -
480 Watt
1st secondary output voltage -
48 Volt
Rated supply voltage at AC 50 Hz -
400 Volt
Rated supply voltage at AC 60 Hz -
500 Volt
Max. output current 1 -
10 Ampere
Nominal value output voltage 1 -
48 Volt
Nominal value output current 1 -
10 Ampere
