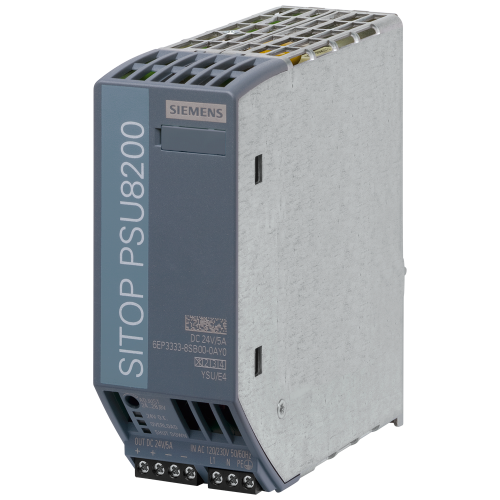

PSU8200 - The technology PSU for demanding solutions

SITOP PSU8200 is ideal for complex plants and machines. The wide-range input allows it to be connected to any supply system and also to withstand large voltage fluctuations.

PSU8200 - The technology PSU for demanding solutions
PSU8200 - The technology PSU for demanding solutions

The technology power supply for demanding solutions

SITOP PSU8200 is ideal for complex plants and machines. The wide-range input allows it to be connected to any supply system and also to withstand large voltage fluctuations. The power boost briefly delivers up to three times the rated current. And in the event of an overload, you can choose between constant current with automatic restart or latching shutdown. The high degree of efficiency reduces energy consumption, while the compact metal enclosure saves space.

Optimal power supply – including for demanding solutions


The one, two and three-phase SITOP modular power supply units are the technology power supplies for demanding solutions. They offer special functions that facilitate universal use and flexible adaptation to the application.

Reliable power for complex plants and machines ...


... with maximum functionality


The wide-range input of SITOP PSU8200 allows connection to almost any

electrical power system worldwide and ensures a high degree of safety even if there are large voltage fluctuations.

The technology power supplies offer an excellent overload behavior: The Power Boost supplies up to three times the rated current for a short time, and with the extra power of 150%, consumers with high power consumption can be connected without problems. Moreover, you can choose between constant current or automatic restart in case of overload. The very high efficiency keeps the energy consumption and heat generation in the control cabinet to a minimum, and the compact metal enclosure requires less space.

To further increase the availability, the SITOP PSU8200 power supply units can be combined with buffer, DC UPS, redundancy and selectivity modules.

Your benefits at a glance

  • Extremely slim design – no lateral installation clearances required
  • Power Boost with 3 times the rated current (for 25 ms) for tripping protective devices
  • Extra power with 1.5 times the rated current (5 s/min) for brief, operational overload
  • Optional short-circuit behavior between constant current and restart
  • Optional symmetrical load distribution for parallel operation
  • Extremely high efficiency up to 95%
  • ­Wide temperature range from -25 to +70 °C
  • Comprehensive certifications, such as cULus, ATEX or GL
