6EP19613BA21

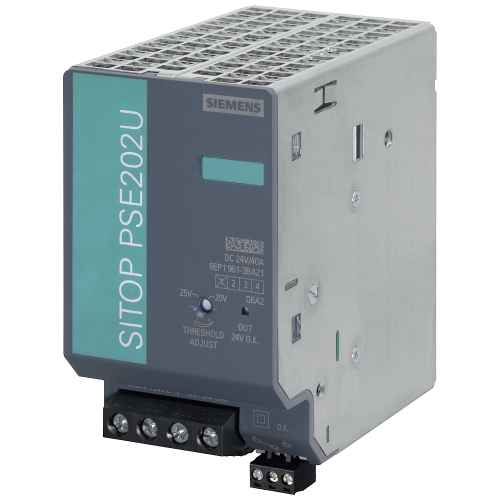

PSE202U - Decoupling of two 24V PSU - 2 x 5 to 20 amp or 1 x 40 amp PSU per module.

Manufacturer's No: 6EP1961-3BA21     Manufacturer: Siemens
PSE202U - Decoupling of two 24V PSU - 2 x 5 to 20 amp  or 1 x 40 amp PSU per  module.

View 3D

Availability In Stock

£121.00
  • Redundancy module for SITOP power supplies
  • Input/output: 24V DC/40A
  • Designed to decouple two power supplies
  • Max output current per supply: 20A

Accessories



Product

Manufacturer Material ID -
6EP1961-3BA21
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
AT
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Power consumption -
- Voltampere
Width in number of modular spacings -
-
Power output -
- Watt
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
70 Millimetre
Degree of protection (IP) -
IP20
Width -
70 Millimetre
Height -
125 Millimetre
Depth -
120 Millimetre
Recess height -
225 Millimetre
Recess width -
70 Millimetre
Modular version -
Voltage type of supply voltage -
DC
Output voltage stabilized -
Type of electric connection -
Screw connection
Rail mounting possible -
Degree of protection (IP rating) -
IP20
1st secondary output voltage -
24 Volt
Rated supply voltage at DC -
24 Volt
Max. output current 1 -
40 Ampere
Nominal value output voltage 1 -
24 Volt
Nominal value output current 1 -
40 Ampere

Availability In Stock

£121.00
