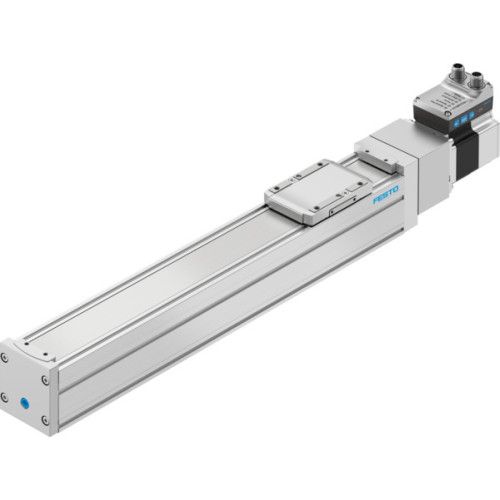

ELGS-BS-KF-60-300-12P-ST-M-H1-PLK-AA Ball screw axis unit

Manufacturer's No: ELGS-BS-KF-60-300-12P-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-BS-KF-60-300-12P-ST-M-H1-PLK-AA Ball screw axis unit

Availability Back Order

£1,272.69
  • ELGS-BS-KF-60-300-12P-ST-M-H1-PLK-AA Ball screw axis unit
  • Working stroke: 300 mm
  • Size: 60
  • Spindle diameter: 12 mm
  • Spindle pitch: 12 Y13
  • Design: Electromechanical linear axis with ball screw and integrated drive
  • Motor type: Stepper motor
  • Mounting position: Optional
  • Guide: Recirculating ball bearing guide
  • Position detection: Motor encoder and proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature and integrated CMOS temperature sensor
  • Additional functions: User interface and integrated end-position sensing
  • Display: LED
  • Max. acceleration: 5 m/s²
  • Max. speed: 0.25 m/s
  • Repetition accuracy: ±0.01 mm
  • Duty cycle: 100%
  • Insulation protection class: B
  • Nominal voltage DC: 24 V
  • Nominal current: 5.3 A
  • Parameterisation interface: IO-Link and user interface
  • Rotor position transducer resolution: 16 BIT
  • Vibration resistance: Transport application test with severity level 1
  • Shock resistance: Shock test with severity level 1
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0 - 90%
  • Degree of protection: IP40
  • Max. force: Fy 3641 N, Fz 3641 N, Fy total axis 600 N, Fz total axis 1800 N
  • Max. moment: Mx 29.1 Nm, My 31.8 Nm, Mz 31.8 Nm
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Product weight: 4392 g
  • Dynamic deflection: 0.05% of the axis length, max. 0.5 mm
  • Static deflection: 0.1% of the axis length
  • Number of digital logic outputs 24 V DC: 2
  • Number of digital logic inputs: 2
  • IO-Link support: Yes
  • Max. cable length: 15 m for outputs, 15 m for inputs, 20 m with IO-Link operation
  • Switching logic: PNP (positive switching)
  • Material: Painted die-cast aluminum, anodized wrought aluminum alloy, high-alloy stainless steel, steel

Accessories



Product

Manufacturer Material ID -
ELGS-BS-KF-60-300-12P-ST-M-H1-PLK-AA
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
