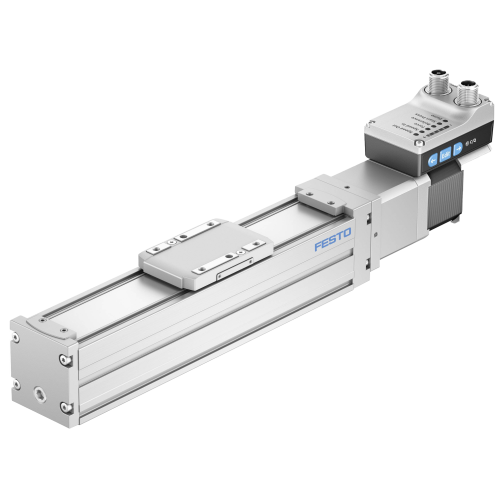

Spindle axis ELGS-BS-KF

Extremely compact and cost-effective spindle axis ELGS-BS with precise, resilient recirculating ball bearing guide for the slide and powerful ball screw drive.

Spindle axis ELGS-BS-KF
Spindle axis ELGS-BS-KF

Spindle axis and toothed belt axis ELGS

Extremely compact and cost-effective spindle axis ELGS-BS with precise, resilient recirculating ball bearing guide for the slide and powerful ball screw drive.

  • Three sizes for a payload of up to 20 kg at a max. stroke of 800 mm

Extremely cost-effective and durable toothed belt axis ELGS-TB with precise, resilient recirculating ball bearing guide for the slide in a compact design – especially as a main axis in handling systems.

  • Two sizes for up to 1.3 m/s at a max. stroke of 2,000 mm

Common features:

  • Permanently attached stainless steel cover strip protects the internal guide and the spindle or toothed belt
  • Unique "one-size-down" assembly system for mounting with each other and with the mini slide EGSS
  • Optional: vacuum connection to minimise emissions of particulates from the axis to the system
  • The motor can be rotated 4 x 90° – this can be modified at any time
