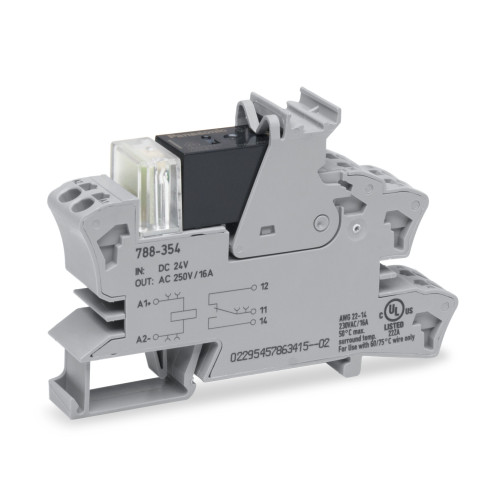

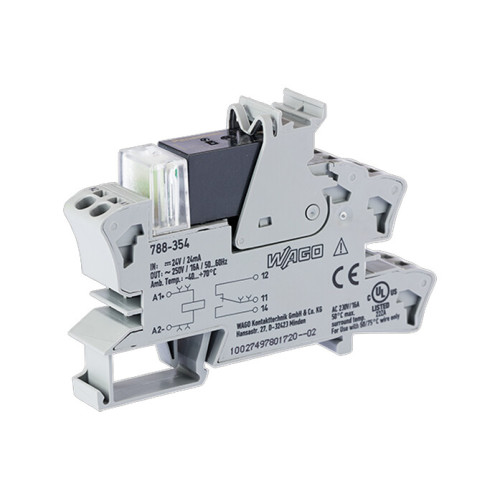

788-354

Relay Socket with Relay and Status, 1 Changeover Contact (1 U) 24 VDC Gray, (120A making capacity for lamp loads)

Manufacturer's No: 788-354     Manufacturer: WAGO
Relay Socket with Relay and Status,  1 Changeover Contact (1 U) 24 VDC Gray,  (120A making capacity for lamp loads)

Availability Back Order

£12.18
  • Relay module for lamp loads
  • Nominal input voltage: 24 VDC
  • 1 changeover contact
  • Limiting continuous current: 16 A
  • Red status indicator
  • Module width: 15 mm
  • Terminal capacity: 2.50 mm²
  • Color: gray

Accessories

Ferrule, Sleeve For 0.5 mm / Awg 22 Insulated White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-241
Price £0.09
Back Order

Ferrule, Sleeve For 0.75 mm / Awg 20 Insulated Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-242
Price £0.09
Back Order

Ferrule, Sleeve For 1.5 mm / Awg 16 Insulated Black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-244
Price £0.09
Back Order

Pivoting Group Marker Carrier, Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 249-105
Price £0.24
Back Order

Twin Ferrule, Sleeve For 2 X 1 mm / Awg 2 X 18 Red, Insulated Red

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-542
Price £0.17
Back Order

Jumper, for jumper slot, 2-way, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 788-113
Price £0.51
In Stock

Jumper, for jumper slot, 3-way, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 788-114
Price £0.99
Back Order

Jumper, for jumper slot, 6-way, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 788-116
Price £1.97
Back Order

Jumper, for jumper slot, 4-way, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 788-115
Price £1.32
Back Order

Jumper, for jumper slot, 8-way, insulated, light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 788-117
Price £2.64
Back Order

Group Marker Carrier, For WMB And Miniature WSB Marker Slo 10 mm Wide White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 209-145
Price £0.29
Back Order

Protection Cover, Transparent

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 209-184
Price £0.18
Back Order

Comb-style jumper bar; 2-way (1-3); insulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 788-118
Price £0.99
Back Order


Product

Manufacturer Material ID -
788-354
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
54 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
86 Millimetre
Nominal current -
16 Ampere
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type for actuating -
DC
Width -
15 Millimetre
With LED indication -
