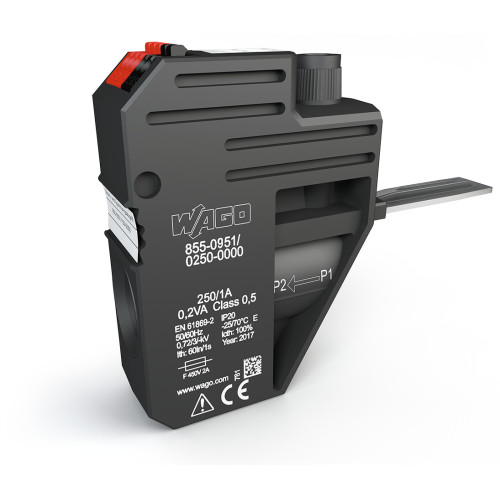

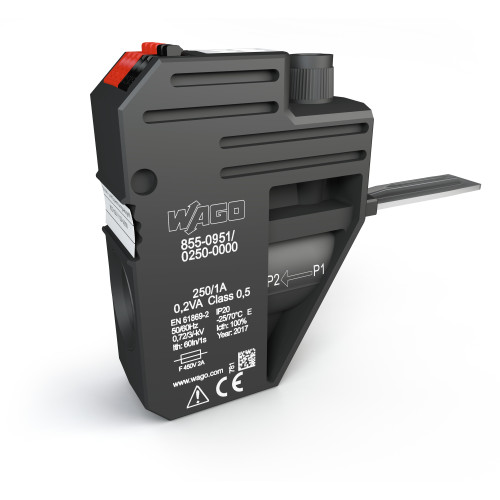

855-951/250-000

Current and voltage tap up to 95 mm, Primary rated current: 250 A, Secondary rated current: 1 A, Rat

Manufacturer's No: 855-951/250-000     Manufacturer: WAGO
Current and voltage tap up to 95 mm, Primary rated current: 250 A, Secondary rated current: 1 A, Rat

Availability Back Order

£59.94
  • Current and voltage tap up to 95 mm²
  • Primary rated current: 250 A
  • Secondary rated current: 1 A
  • Rated power: 0.2 VA
  • Accuracy class: 0.5

Accessories

2-Conductor Through Terminal Block, Blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-194
Price £25.53
Back Order


Product

Manufacturer Material ID -
855-951/250-000
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
NL
UNSPSC -
39121032

Technical Specification

Height opening -
- Millimetre
Number of primary inputs -
-
Over current limiting factor -
UN
Primary rated current -
250 Ampere
Secondary connection -
Plug-in connection
Secondary rated apparent power -
0.2 Voltampere
Secondary rated current -
1 Ampere
Accuracy class -
0.5
Model -
Other
Opening diameter -
16 Millimetre
Rated primary current -
250 Ampere
Rated secondary apparent power -
0.2 Voltampere
Rated secondary current -
1 Ampere
Width opening -
16 Millimetre
With copper rail -
With shock protection -

Availability Back Order

£59.94
