855-301/250-501

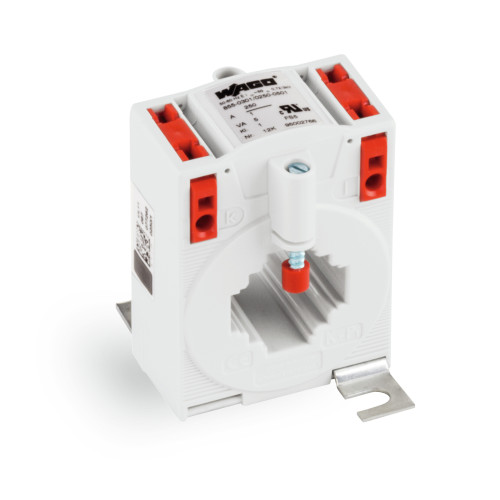

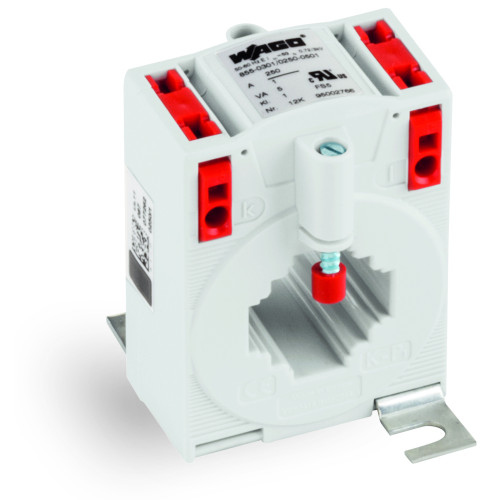

Plug-in current transformer, Primary rated current: 250 A, Secondary rated current: 1 A, Rated power

Manufacturer's No: 855-301/250-501     Manufacturer: WAGO
Plug-in current transformer, Primary rated current: 250 A, Secondary rated current: 1 A, Rated power

Availability Back Order

£28.63
  • Plug-in current transformer
  • Primary rated current: 250 A
  • Secondary rated current: 1 A
  • Rated power: 5 VA
  • Accuracy class: 1

Accessories



Product

Manufacturer Material ID -
855-301/250-501
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85043129
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121032

Technical Specification

Width opening -
25.3 Millimetre
Height opening -
25.3 Millimetre
Primary rated current -
250 Ampere
Secondary connection -
Plug-in connection
Secondary rated apparent power -
5 Voltampere
Secondary rated current -
1 Ampere
Accuracy class -
1
Model -
Attachable current transformer
Number of primary inputs -
1
Opening diameter -
25.7 Millimetre
Over current limiting factor -
FS 5
Rated primary current -
250 Ampere
Rated secondary apparent power -
5 Voltampere
Rated secondary current -
1 Ampere
Snap mounting -
With shock protection -
