855-301/050-103

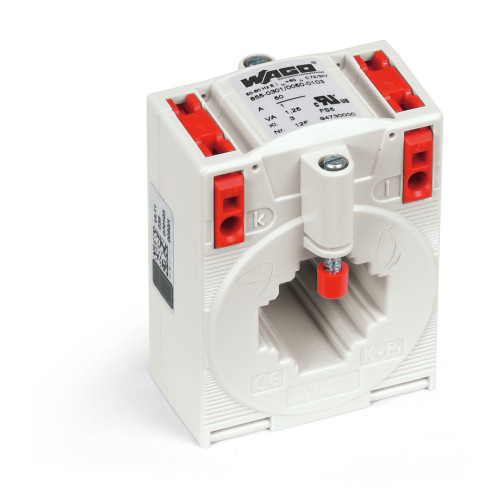

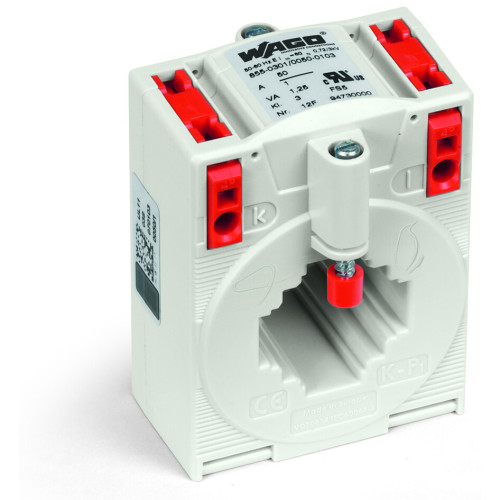

Plug-in current transformer, Primary rated current: 50 A, Secondary rated current: 1 A, Rated power:

Manufacturer's No: 855-301/050-103     Manufacturer: WAGO
Plug-in current transformer, Primary rated current: 50 A, Secondary rated current: 1 A, Rated power:

Availability Back Order

£29.27
  • Plug-in current transformer
  • Primary rated current: 50 A
  • Secondary rated current: 1 A
  • Rated power: 1.25 VA
  • Accuracy class: 3

Accessories



Product

Manufacturer Material ID -
855-301/050-103
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
39269097
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121032

Technical Specification

Width opening -
25.3 Millimetre
Height opening -
25.3 Millimetre
Primary rated current -
50 Ampere
Secondary connection -
Plug-in connection
Secondary rated apparent power -
1.25 Voltampere
Secondary rated current -
1 Ampere
Accuracy class -
3
Model -
Attachable current transformer
Number of primary inputs -
1
Opening diameter -
25.7 Millimetre
Over current limiting factor -
FS 5
Rated primary current -
50 Ampere
Rated secondary apparent power -
1.25 Voltampere
Rated secondary current -
1 Ampere
Snap mounting -
With shock protection -

Availability Back Order

£29.27
