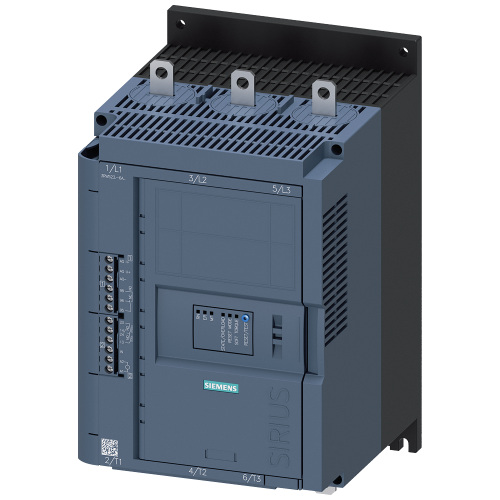

SIRIUS soft starter 200-480 V 143 A, 24 V AC/DC screw terminals analog output

3RW52356AC04

SIRIUS soft starter 200-480 V 143 A, 24 V AC/DC screw terminals analog output

Produced by Siemens

Availability In Stock

Price - £1,717.50
SIRIUS soft starter 200-480 V 143 A, 24 V AC/DC Screw terminals Analog output Soft starter SIRIUS 3RW52 General Performance for simple applications for soft starting and stopping of three-phase asynchronous motors. Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction, saves energy and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. Thanks to 3-phase control, particularly suitable for high motor outputs and inside-delta circuits. The innovative Soft Torque function ensures that the motor is started gently. With the integrated remote reset, you can quickly and easily clear faults from a remote location. Worldwide approvals (e.g. IEC and UL/CSA). The General Performance 3RW52 soft starters are available for supply systems up to 600 V in a wide performance range up to 560 kW with 24 V or 110-250 V supply voltages and all with both screw and spring-type terminals. Different device versions are available for analog output and thermistor motor protection. Optional plug-in communication modules allow connection via PROFINET, PROFIBUS and Modbus TCP. Various HMI modules are available for installation in the device or the control cabinet door. SIRIUS 3RW5 soft starters - As flexible as your tasks.
Product
Manufacturer Material ID -
3RW5235-6AC04
Net Weight -
6.60kg
Additional Product Information
Commodity Code -
85371098
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521
Technical Specification
Rated operation current Ie at 40 ∞C Tu -
143 Ampere
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Rated operating voltage Ue -
200 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at 40 °C Tu -
143 Ampere
Rated power three-phase motor, inline, at 230 V -
37 Kilowatt
Rated power three-phase motor, inline, at 400 V -
75 Kilowatt
Rated power three-phase motor, inside delta, at 230 V -
75 Kilowatt
Rated power three-phase motor, inside delta, at 400 V -
132 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
product_description -
143A 480V SOFTSTARTER 24VUC Degrees celsius
