3RW40361BB04

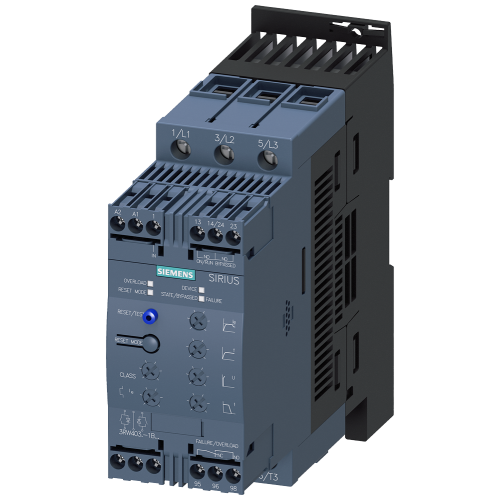

Soft starter S2, 45 A, 22 kW/400 V, 40 degrees, 480-200 V AC, 24 V AC/DC

Manufacturer's No: 3RW4036-1BB04     Manufacturer: Siemens
Soft starter S2, 45 A, 22 kW/400 V, 40 degrees, 480-200 V AC, 24 V AC/DC

View 3D

Availability In Stock

£589.62
  • Soft starter model: SIRIUS S2 45 A
  • Power rating: 22 kW at 400 V
  • Operating temperature: Up to 40°C
  • Voltage range: 200-480 V AC
  • Control voltage: 24 V AC/DC
  • Terminal type: Screw terminals
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Presentation video
Instructional video
Instructional video
Product video
Product video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RW4036-1BB04
Net Weight -
1.29kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Rated operation current Ie at 40 ∞C Tu -
45 Ampere
Rated power three-phase motor, inside delta, at 230 V -
- Kilowatt
Rated power three-phase motor, inside delta, at 400 V -
- Kilowatt
Degree of protection (NEMA) -
UN
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP00
Degree of protection (IP rating) -
IP00
Function -
Single direction
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operating voltage Ue -
200 Volt
Rated operation current Ie at 40 °C Tu -
45 Ampere
Rated power three-phase motor, inline, at 230 V -
11 Kilowatt
Rated power three-phase motor, inline, at 400 V -
22 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Other
Voltage type for actuating -
AC/DC

Availability In Stock

£589.62
