3RV20414JA10

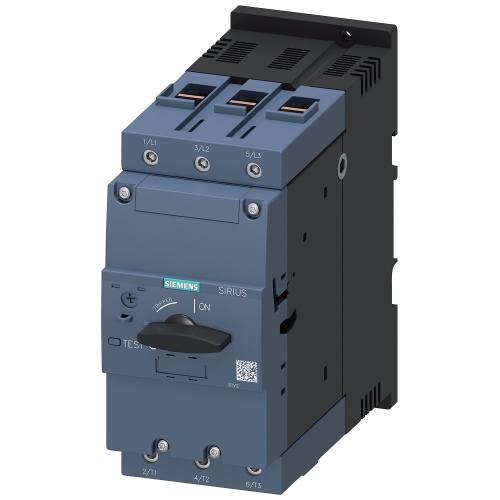

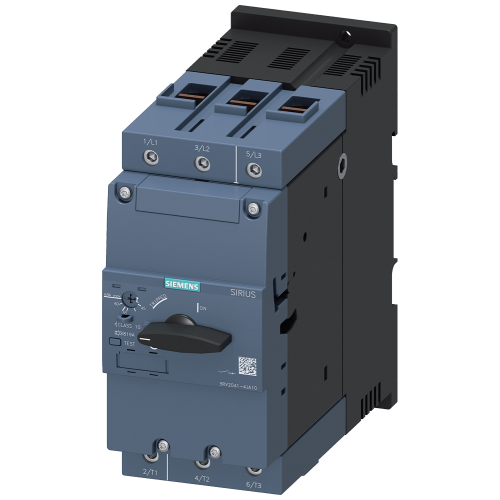

Circuit breaker, S3, motor protection, Class 10, A-release 45-63 A, short-circuit release 819 A

Manufacturer's No: 3RV2041-4JA10     Manufacturer: Siemens
Circuit breaker, S3, motor protection, Class 10, A-release 45-63 A, short-circuit release 819 A

View 3D

Availability In Stock

£232.64
  • Circuit breaker size: S3
  • Motor protection class: CLASS 10
  • A-release: 45-63 A
  • N-release: 819 A
  • Screw terminal connection
  • Standard switching capacity

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order
Question and Answer (Q&A video)
Presentation video
Product video
Question and Answer (Q&A video)
Instructional video
Instructional video
Product video
Presentation video


Product

Manufacturer Material ID -
3RV2041-4JA10
Net Weight -
2.23kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
39121601

Technical Specification

-
Siemens
Degree of protection (IP) -
IP20
With thermal protection -
With thermal overload protection -
Type of control element -
Rotating button
Rated short-circuit breaking capacity lcu at 400 V, AC -
65 kiloampere
Adjustment range undelayed short-circuit release -
819 Ampere
Degree of protection (IP rating) -
IP20
Depth -
176 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
165 Millimetre
Number of poles -
3
Overload release current setting -
45 Ampere
Phase failure sensitive -
Rated operating voltage -
690 Volt
Rated operation power at AC-3, 230 V -
18.5 Kilowatt
Rated operation power at AC-3, 400 V -
30 Kilowatt
Rated permanent current Iu -
63 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
65 kiloampere
Switch off technique -
Magnetic
Type of electrical connection of main circuit -
Screw connection
Width -
70 Millimetre

Availability In Stock

£232.64
