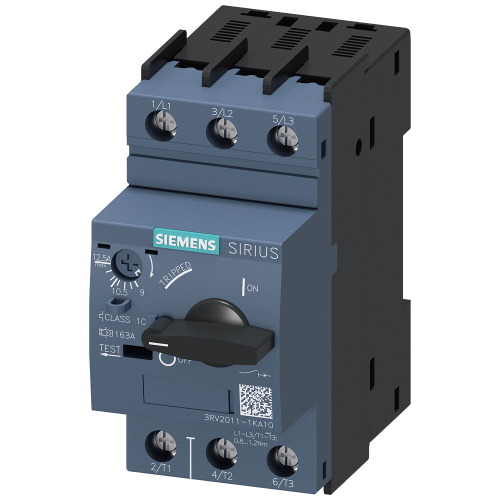

Circuit breaker, S00, motor protection, Class 10, A-release 9-12.5 A, short-circuit release 163 A

3RV20111KA10

Circuit breaker, S00, motor protection, Class 10, A-release 9-12.5 A, short-circuit release 163 A

Produced by Siemens

Availability In Stock

Price - £68.93
Circuit breaker size S00 for motor protection, CLASS 10 A-release 9...12 A N-release 163 A screw terminal Standard switching capacity

3RT29001SB20

Labeling plates 20x7 mm titanium-gray

£0.22
Back Order
No alternatives available for this product.
Product
Manufacturer Material ID -
3RV2011-1KA10
Net Weight -
0.35kg
Additional Product Information
Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601
Technical Specification
Width -
45 Millimetre
Height -
97 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
5.5 Kilowatt
Rated permanent current Iu -
12.5 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
9 Ampere
Rated operation power at AC-3, 230 V -
3 Kilowatt
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
163 Ampere
