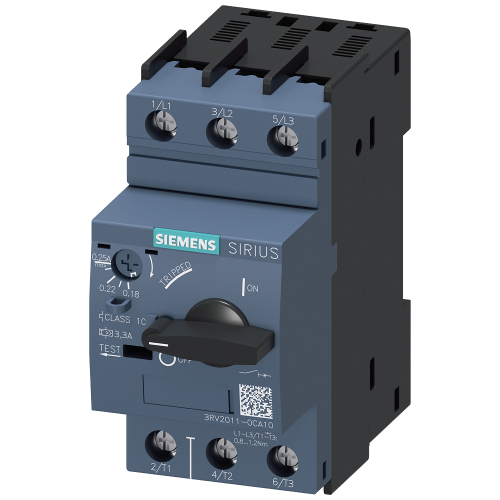

Circuit breaker, S00, motor protection, Class 10, A-release 0.18-0.25 A, short-circuit release 3.3 A

3RV20110CA10

Circuit breaker, S00, motor protection, Class 10, A-release 0.18-0.25 A, short-circuit release 3.3 A

Produced by Siemens

Availability In Stock

Price - £51.50
Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.18...0.25 A N-release 3.3 A screw terminal Standard switching capacity

3RT29001SB20

Labeling plates 20x7 mm titanium-gray

£0.22
Back Order
No alternatives available for this product.
Product
Manufacturer Material ID -
3RV2011-0CA10
Net Weight -
0.28kg
Additional Product Information
Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601
Technical Specification
Width -
45 Millimetre
Height -
97 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
0.06 Kilowatt
Rated permanent current Iu -
0.25 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
0.18 Ampere
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
3.3 Ampere
