3UF70111AB000

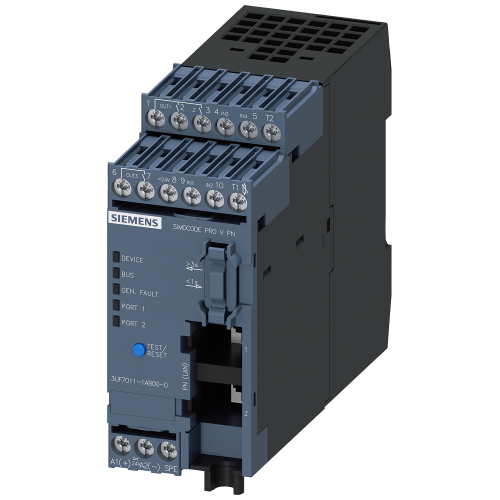

Basic unit 3 SIMOCODE pro V PN Ethernet/PROFINET IO, OPC UA server/web server

Manufacturer's No: 3UF7011-1AB00-0     Manufacturer: Siemens
Basic unit 3 SIMOCODE pro V PN Ethernet/PROFINET IO, OPC UA server/web server

View 3D

Availability In Stock

£576.33
  • SIMOCODE pro V PN with Ethernet/PROFINET IO
  • PN system redundancy for increased reliability
  • OPC UA server and Web server for advanced connectivity
  • Transmission rate of 100 Mbps
  • 2 x bus connection via RJ45
  • 4 inputs/3 outputs freely parameterizable
  • Operating voltage: 24 V DC
  • Input for thermistor connection
  • Monostable relay outputs
  • Expandable by extension modules
Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3UF7011-1AB00-0
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Number of analogue inputs -
-
Number of analogue outputs -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie -
- Ampere
Type of interface -
UN
Rated operation frequency -
- Hertz
Rated voltage Ue at AC 50 Hz -
- Volt
Rated voltage Ue at AC 60 Hz -
- Volt
Rated voltage Ue at DC -
- Volt
Degree of protection (NEMA) -
UN
Number of binary inputs -
4
Degree of protection (IP) -
IP20
Type of connection system -
None
Voltage type for actuating -
DC
Current detection module -
Degree of protection (IP rating) -
IP20
Input for thermistor connection -
Number of digital inputs -
4
Number of electronic outputs -
0
Number of outputs, with contact -
3
Switching function -
Mono stable
Type of electrical connection for auxiliary- and control current circuit -
Screw connection
Voltage detection module -
