7KN13100MC000AA8

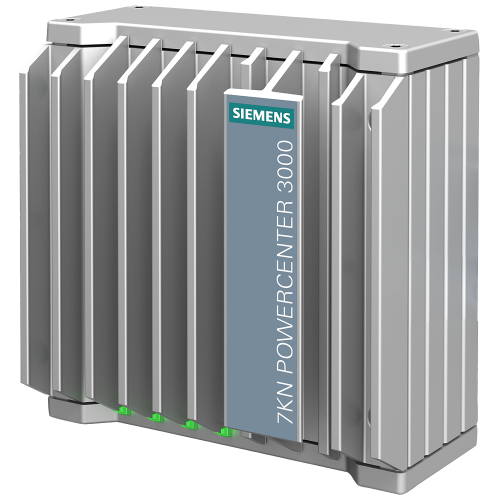

7KN POWERCENTER 3000 V1

Manufacturer's No: 7KN1310-0MC00-0AA8     Manufacturer: Siemens

Availability Back Order

£1,747.92
  • Power Management System for SENTRON and SIRIUS devices
  • Acquires, archives, and visualizes measured values, status information, and messages
  • Web server available in 10 languages
  • Optional data transmission to Cloud platforms like Insights Hub, AWS, AZURE
  • Supports energy management standards ISO 50001, 50003, 50006 and energy audits DIN 16247
  • Commissioning with SENTRON powerconfig or autonomously via web UI

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Instructional video


Product

Manufacturer Material ID -
7KN1310-0MC00-0AA8
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
84715000
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: 5A992
UNSPSC -
43211500

Technical Specification

Construction type housing -
Other
Preinstalled operating system -
Linux
Degree of protection (IP rating) -
IP40
Depth -
41 Millimetre
Height -
85 Millimetre
Max. main memory -
2147.48364 Megabyte
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces USB -
2
Operating temperature -
0 Degrees celsius
Rail mounting possible -
Supply voltage DC -
20.4 Volt
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Voltage type of supply voltage -
DC
Width -
85 Millimetre
With hard disc -
With other storage media -

Availability Back Order

£1,747.92
