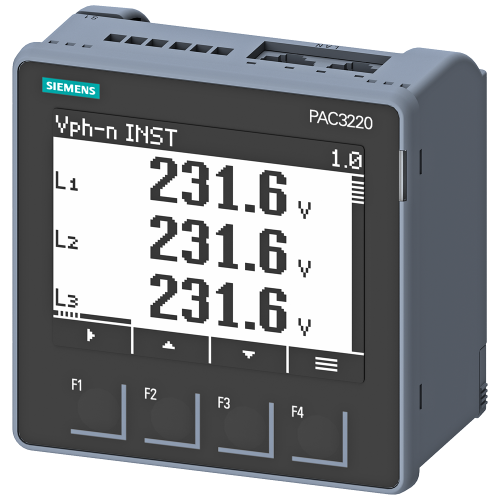

SENTRON PAC3220 power monitoring, front mounting, 690/400 V, 5 A, 100-250 V AC/DC, Modbus TCP

7KM32200BA011DA0

SENTRON PAC3220 power monitoring, front mounting, 690/400 V, 5 A, 100-250 V AC/DC, Modbus TCP

Produced by Siemens

Availability In Stock

Price - £430.50
SENTRON PAC3220 LCD 96X96 mm Power Monitoring Device Controll panel instrument for electrical values protocol: Modbus TCP with graphics display U rated input: 690/400V 45-65Hz IE rated input: X/1A oder X/5A AC Power supply: 100 ... 250 V +-10 % AC/DC screw connections multimeter SENTRON 7KM PAC3220 for the precise acquisition of all important electrical measured variables in power distribution systems for the assessment of system states and power system quality in the process and manufacturing industries, but also for critical infrastructures such as hospitals and data centers. The 7KM PAC3220 multi-function measuring device enables precise, reproducible and reliable measurement of all important electrical characteristic values for infeed, outgoing feeders, or individual loads. It not only provides comprehensive information about your electrical installations and power distribution, but also key measured values for assessing the status of the plant. For further processing of the measured data, the devices are equipped with a wide range of communication options for easy integration into higher-level automation and energy management systems via Modbus TCP, PROFINET, PROFIBUS and Modbus RTU. With additional modules, further digital inputs and outputs, analog inputs, N conductor direct measurement or residual current measurement can be implemented. The 7KM PAC measuring devices are available in different versions designed to match your requirements. SENTRON PAC - specialists in measured value acquisition.
No alternatives available for this product.
Product
Manufacturer Material ID -
7KM3220-0BA01-1DA0
Net Weight -
0.44kg
Additional Product Information
Commodity Code -
90303370
Country of Origin -
HU
UNSPSC -
41113637
Technical Specification
Width -
96 Millimetre
Height -
96 Millimetre
Depth -
56 Millimetre
Number of digital inputs -
2
Number of digital outputs -
2
Supply voltage AC 50 Hz -
400 Volt
Supply voltage AC 60 Hz -
690 Volt
Supply voltage DC -
100 Volt
Number of voltage measurement inputs -
3
Number of current measurement inputs -
3
