4NC54352CH21

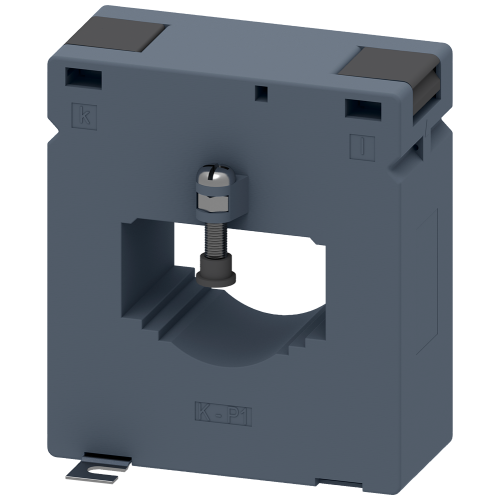

current transformer 1500/5 A, 10 VA CL 1.0

Manufacturer's No: 4NC5435-2CH21     Manufacturer: Siemens
current transformer 1500/5 A, 10 VA CL 1.0

View 3D

Availability Back Order

£98.79
  • Current transformer
  • Ratio: 1500:5 A
  • Accuracy Class: 1.0
  • Power Rating: 10 VA

Accessories



Product

Manufacturer Material ID -
4NC5435-2CH21
Net Weight -
1.11kg

Additional Product Information

Commodity Code -
85043121
Country of Origin -
IN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121032

Technical Specification

Height opening -
36 Millimetre
Primary rated current -
1500 Ampere
Secondary connection -
Screw connection
Secondary rated apparent power -
10 Voltampere
Secondary rated current -
5 Ampere
Over current limiting factor -
FS 10
Model -
Attachable current transformer
Number of primary inputs -
1
Opening diameter -
41 Millimetre
Rated primary current -
1500 Ampere
Rated secondary apparent power -
10 Voltampere
Rated secondary current -
5 Ampere
Width opening -
64 Millimetre
With shock protection -

Availability Back Order

£98.79
