3RK19080AP000EP0

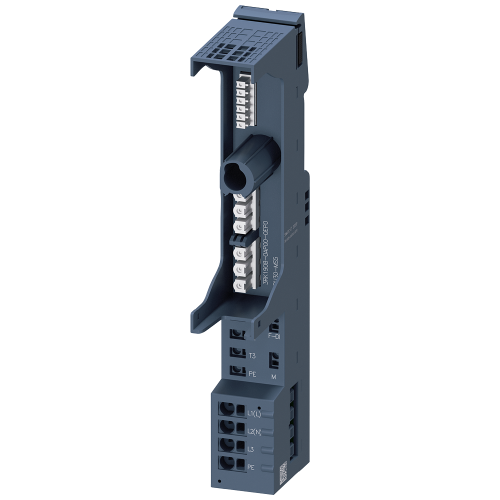

BaseUnit ET 200SP with F-DI for motor starter with infeed 500 V

Manufacturer's No: 3RK1908-0AP00-0EP0     Manufacturer: Siemens
BaseUnit ET 200SP with F-DI for motor starter with infeed 500 V

View 3D

Availability Back Order

£119.73
  • Base unit model: BU30-MS5
  • Designed for ET 200SP motor starter
  • Input voltage: 500 V
  • Includes infeed bus cover
Product video
Instructional video
Presentation video


Product

Manufacturer Material ID -
3RK1908-0AP00-0EP0
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Rated operation power at AC-3, 400 V -
- Kilowatt
Number of command positions -
-
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Number of indicator lights -
-
Overload release current setting -
- Ampere
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Release class -
UN
Rated operation power at AC-3, 230 V, 3-phase -
- Kilowatt
Rated power, 460 V, 60 Hz, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Rated operation current at AC-3, 400 V -
- Ampere
Ambient temperature, upper operating limit -
- Degrees celsius
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Degree of protection (NEMA) -
UN
Coordination class according to IEC 60947-4-3 -
UN
Degree of protection (IP) -
IP20
Width -
30 Millimetre
Height -
215 Millimetre
Depth -
75 Millimetre
Rated operation current Ie -
32 Ampere
Degree of protection (IP rating) -
IP20
Type of electrical connection of main circuit -
Other
Type of electrical connection for auxiliary- and control current circuit -
Other
Voltage type for actuating -
DC
Kind of motor starter -
Other

Availability Back Order

£119.73
