3RK13080DE000CP0

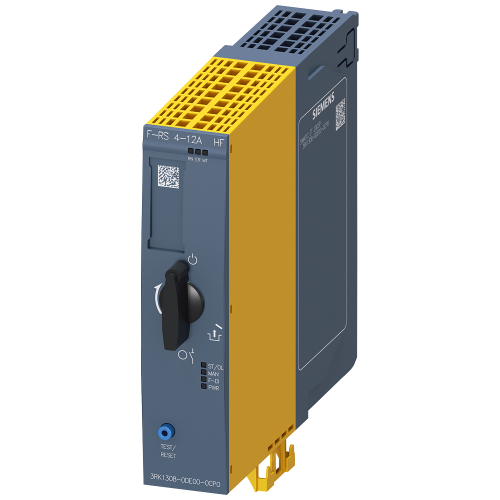

ET 200SP Fail-safe Reversing Starter, Setting Range 4 - 12A AC-3, 5.5Kw / 400V Hybrid Starter

Manufacturer's No: 3RK1308-0DE00-0CP0     Manufacturer: Siemens
ET 200SP Fail-safe Reversing Starter, Setting Range 4 - 12A AC-3, 5.5Kw / 400V Hybrid Starter

View 3D

Availability Back Order

£468.65
  • Failsafe reversing starter with high feature
  • Includes fan (3RW4928-8VB00)
  • Electronic switching
  • Electronic overload protection up to 5.5 kW / 400 V
  • Adjustment range from 4.0 A to 12 A
  • PROFIenergy compatible
  • Option for 3DI/LC module

Mandatory additional product

Selectable mandatory product

Accessories

Product video
Question and Answer (Q&A video)
Instructional video
Presentation video


Product

Manufacturer Material ID -
3RK1308-0DE00-0CP0
Net Weight -
0.60kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Rated operation power at AC-3, 400 V -
- Kilowatt
Number of command positions -
-
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Type of electrical connection of main circuit -
UN
Type of electrical connection for auxiliary- and control current circuit -
UN
Kind of motor starter -
UN
Rated power, 460 V, 60 Hz, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Rated operation current at AC-3, 400 V -
- Ampere
Ambient temperature, upper operating limit -
- Degrees celsius
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Width -
30 Millimetre
Height -
142 Millimetre
Depth -
150 Millimetre
Rated operation current Ie -
12 Ampere
Number of indicator lights -
7
Overload release current setting -
4 Ampere
External reset possible -
Degree of protection (IP rating) -
IP20
Release class -
Other
With short-circuit release -
Voltage type for actuating -
DC
Rated operation power at AC-3, 230 V, 3-phase -
4.78 Kilowatt
Coordination class according to IEC 60947-4-3 -
Class 1

Availability Back Order

£468.65
