3RK13080CC000CP0

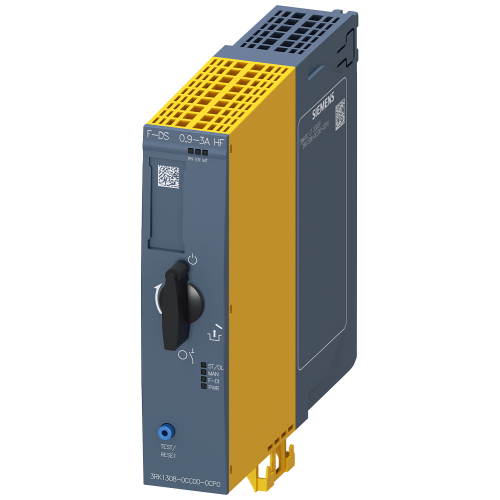

Fail-safe direct on-line starter, electron. overload protection up to 1.1 kW/400 V, 0.9-3 A

Manufacturer's No: 3RK1308-0CC00-0CP0     Manufacturer: Siemens
Fail-safe direct on-line starter, electron. overload protection up to 1.1 kW/400 V, 0.9-3 A

View 3D

Availability In Stock

£300.18
  • Fail-safe direct-on-line starter
  • Electronic switching
  • Electronic overload protection up to 1.1 kW / 400 V
  • Adjustment range: 0.9 to 3 A
  • PROFIenergy supported
  • Option for 3DI/LC module

Mandatory additional product

Selectable mandatory product

Accessories

Presentation video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RK1308-0CC00-0CP0
Net Weight -
0.55kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Rated operation power at AC-3, 400 V -
- Kilowatt
Number of command positions -
-
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Type of electrical connection of main circuit -
UN
Type of electrical connection for auxiliary- and control current circuit -
UN
Kind of motor starter -
UN
Rated power, 460 V, 60 Hz, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Rated operation current at AC-3, 400 V -
- Ampere
Ambient temperature, upper operating limit -
- Degrees celsius
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Release class -
Other
Coordination class according to IEC 60947-4-3 -
Class 1
Degree of protection (IP rating) -
IP20
Depth -
150 Millimetre
External reset possible -
Height -
142 Millimetre
Number of indicator lights -
7
Overload release current setting -
0.9 Ampere
Rated operation current Ie -
3 Ampere
Rated operation power at AC-3, 230 V, 3-phase -
1.2 Kilowatt
Voltage type for actuating -
DC
Width -
30 Millimetre
With short-circuit release -

Availability In Stock

£300.18
