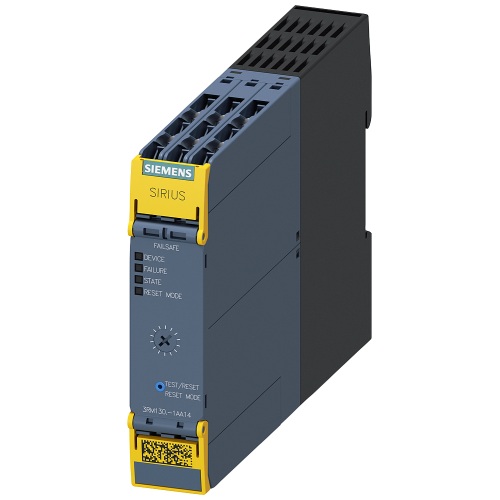

3RM13021AA14

0.09 to 0.75kW - 0.4 to 2.0 A, 3RM1 Safety Reversing Starter

Manufacturer's No: 3RM1302-1AA14     Manufacturer: Siemens

Availability Back Order

£209.44
  • Fail-safe reversing starter
  • Model: 3RM1
  • Voltage: 500 V
  • Power: 0.09 - 0.75 kW
  • Current: 0.4 - 2 A
  • Input Voltage: 110-230 V AC
  • Connection: Screw terminals

Accessories

Product video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Presentation video


Product

Manufacturer Material ID -
3RM1302-1AA14
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Number of indicator lights -
-
Rated operation power at AC-3, 230 V, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Rated operation current at AC-3, 400 V -
- Ampere
Ambient temperature, upper operating limit -
- Degrees celsius
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Degree of protection (NEMA) -
UN
Coordination class according to IEC 60947-4-3 -
UN
Width -
22.5 Millimetre
Height -
100 Millimetre
Depth -
141.6 Millimetre
Rated operation power at AC-3, 400 V -
0.75 Kilowatt
Number of command positions -
0
Rated operation current Ie -
2 Ampere
Overload release current setting -
2 Ampere
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Rated control supply voltage Us at DC -
110 Volt
Degree of protection (IP) -
IP20
Release class -
CLASS 10 A
Type of electrical connection of main circuit -
Screw connection
Type of electrical connection for auxiliary- and control current circuit -
Screw connection
Voltage type for actuating -
AC/DC
Kind of motor starter -
Other
Rated power, 460 V, 60 Hz, 3-phase -
0.55 Kilowatt

Availability Back Order

£209.44
