3RH29211DA02

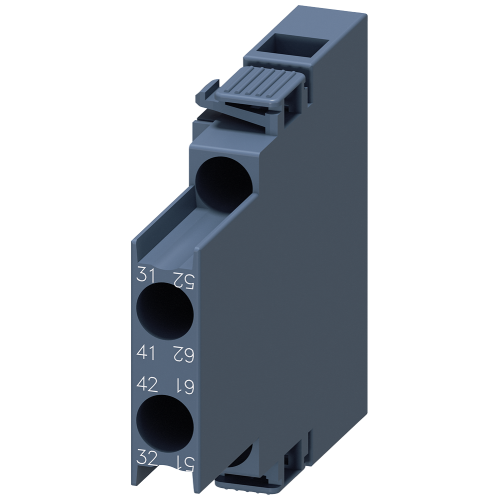

Auxiliary switch lateral, 2 NC, current paths: 1 NC, 1 NC for motor contactors, S0

Manufacturer's No: 3RH2921-1DA02     Manufacturer: Siemens

Availability Back Order

£11.49
  • Auxiliary switch for contactors 3RT2 and contactor relays 3RH2
  • Configuration: Lateral
  • Contacts: 2 NC (Normally Closed)
  • Left side: 51/52, 61/62
  • Right side: 31/32, 41/42
  • Current path: 1 NC, 1 NC
  • Connection: Screw terminal
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Product video
Instructional video


Product

Manufacturer Material ID -
3RH2921-1DA02
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Lamp holder -
None
Model -
Clip-on
Lamp cap/base -
None
Mounting method -
Other
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
0
Number of fault-signal switches -
0
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Type of electric connection -
Screw connection

Availability Back Order

£11.49
