1SFA896105R1100

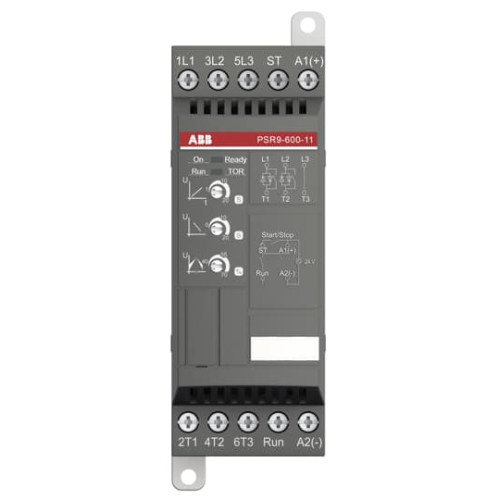

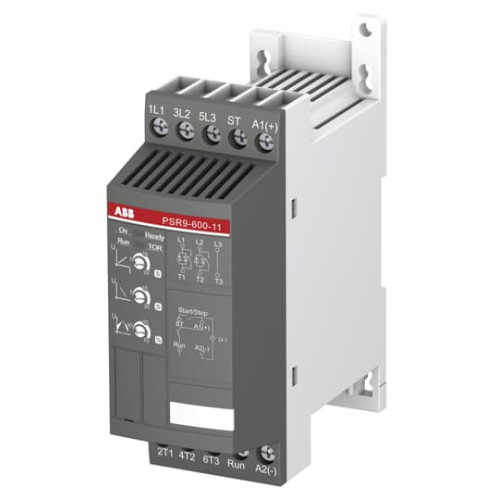

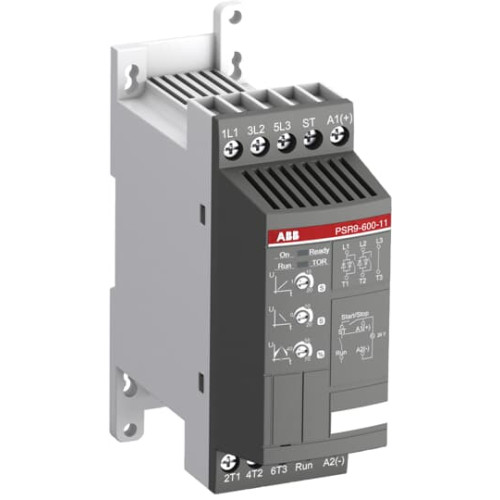

PSR9-600-11 Softstarter - 9 A - 208 ... 600 V AC

Manufacturer's No: PSR9-600-11     Manufacturer: ABB
PSR9-600-11 Softstarter - 9 A - 208 ... 600 V AC

Availability Back Order

£207.70
  • Model: PSR9-600-11 Softstarter
  • Rated Operational Current: 9 A
  • Operating Voltage: 208...600 V AC
  • Rated Control Voltage: 24 V AC/DC
  • Features two-phase control soft start and stop through a voltage ramp
  • Built-in bypass for easy installation and energy saving
  • RUN signal available from a relay output in NO state
  • Start/stop ramp and time easily set by three potentiometers
  • Suitable for small three-phase motors with nominal currents from 3...105 A
  • Can manage up to 100 starts per hour

Read more

  • Common applications: pumps, fans, compressors, conveyors
  • Compatible with manual motor starter (MMS) from ABB
  • Option for Fieldbus communication with external adaptor and Fieldbus plug


Product

Manufacturer Material ID -
PSR9-600-11
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Rated operation current Ie at 40 °C Tu -
9 Ampere

General data

Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
1
Internal bypass -
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable

Electrical data

Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operating voltage Ue -
208 Volt
Rated power three-phase motor, inline, at 230 V -
2.2 Kilowatt
Rated power three-phase motor, inline, at 400 V -
4 Kilowatt
Voltage type for actuating -
AC/DC
