1SAT122000R1011

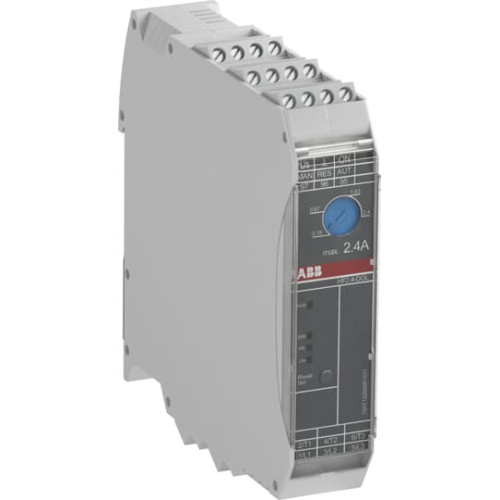

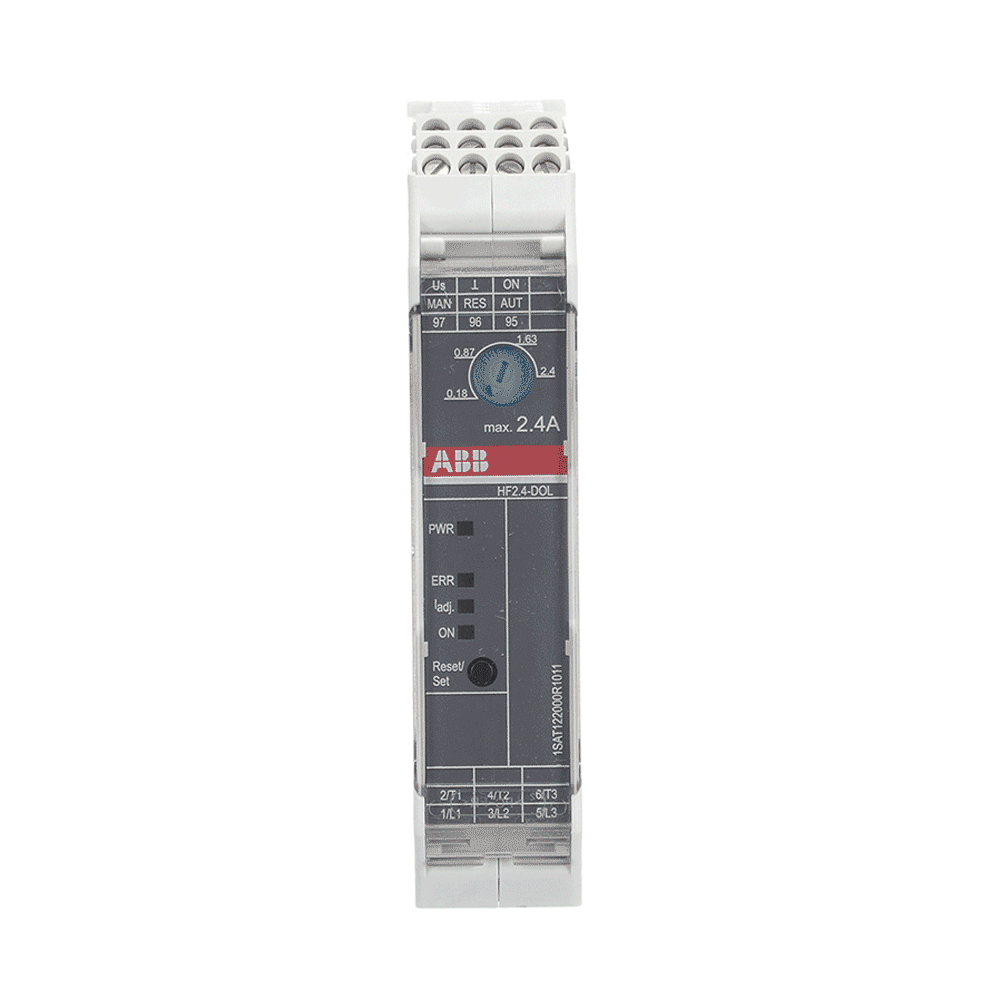

HF2.4-DOL-24VDC Electronic Compact Starter 24 VDC

Manufacturer's No: HF2.4-DOL     Manufacturer: ABB
HF2.4-DOL-24VDC Electronic Compact Starter 24 VDC

Availability Back Order

POA
  • HF2.4-DOL-24VDC Electronic Compact Starter
  • Used for direct-on-line start of motors and switching non-resistive loads
  • Integrated contactor and overload relay functionalities
  • Covers 0.6 A to 9 A for motors up to 3 kW at 500 V AC
  • Wide setting range of integrated electronic overload protection
  • Setting range of HF2.4-DOL-24VDC: 0.18 A to 2.4 A
  • Control supply voltage: 24 V DC
  • Screw connections for control and main connection points
  • HF-DOLE safety range available with emergency stop function
  • Safety Integrity Level 3 according to IEC 61508-1 and Performance Level 'e' according to ISO 13849-1

Read more

  • ATEX-certified safety range


Product

Manufacturer Material ID -
HF2.4-DOL
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85371098
UNSPSC -
39121529

Technical Specification

-
ABB

Electrical data

Rated power, 460 V, 60 Hz, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Rated control supply voltage Us at AC 50HZ -
0 Volt
Rated control supply voltage Us at AC 60HZ -
0 Volt
Rated control supply voltage Us at DC -
24 Volt
Type of electrical connection for auxiliary- and control current circuit -
Screw connection
Voltage type for actuating -
DC
Overload release current setting -
0.18 Ampere
Power consumption -
3.3 Watt
Rated control supply voltage at AC 50 Hz -
0 Volt
Rated control supply voltage at AC 60 Hz -
0 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current at AC-3, 400 V -
2.4 Ampere
Rated operation current Ie -
2.4 Ampere
Rated operation power at AC-3, 230 V, 3-phase -
0.37 Kilowatt
Rated operation power at AC-3, 400 V -
0.75 Kilowatt

General data

Degree of protection (NEMA) -
UN
Coordination class according to IEC 60947-4-3 -
UN
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Degree of protection (IP) -
IP20
Release class -
CLASS 10
Type of electrical connection of main circuit -
Screw connection
External reset possible -
Kind of motor starter -
Direct starter
Number of command positions -
16
Number of indicator lights -
4
Rail mounting possible -
Temperature compensated overload protection -

Ambient conditions

Ambient temperature, upper operating limit -
80 Degrees celsius
