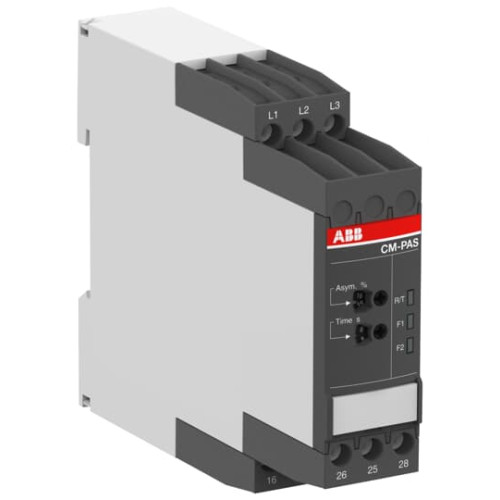

1SVR730774R3300

Phase Failure, Phase sequence, Phase Unbalance relay 2c/o, 3x 300-500VAC input voltage

Manufacturer's No: CM-PAS.41S     Manufacturer: ABB
Phase Failure, Phase sequence, Phase Unbalance relay 2c/o, 3x 300-500VAC input voltage

Availability Back Order

£216.18
  • Phase Failure, Phase Sequence, Phase Unbalance relay
  • Model: CM-PAS.41S
  • Three-phase monitors range
  • Input Voltage: 300-500VAC
  • Output: 2 c/o contacts rated at 250V/4A
  • Monitors phase failure, phase sequence, and phase unbalance
  • Adjustable ON-delay from instantaneous to 30s
  • Sealable transparent cover for protection
  • Screw connection technology with double-chamber cage connection terminals


Product

Manufacturer Material ID -
CM-PAS.41S
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
ABB
Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
300 Volt
Rated control supply voltage Us at AC 60HZ -
300 Volt
Width -
22.5 Millimetre
Height -
85.6 Millimetre
Depth -
103.7 Millimetre
Voltage measurement range -
300 Volt
Phase sequence monitoring -
Phase failure detection -
Phase imbalance monitoring -
Type of electric connection -
Screw connection
Rated control supply voltage at AC 50 Hz -
300 Volt
Rated control supply voltage at AC 60 Hz -
300 Volt
Max. permitted delay-on energization time -
0.2 Second
Min. adjustable delay-on energization time -
0.2 Second
Max. permitted off-delay time -
30 Second
Min. adjustable off-delay time -
0.1 Second
Voltage type for actuating -
AC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
ABB

Availability Back Order

£216.18
