1SFL657001R7011

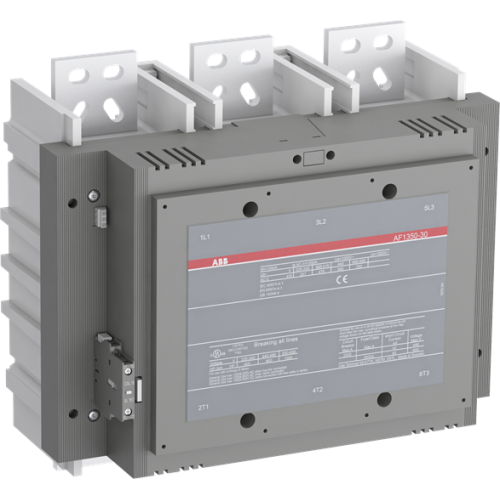

AF1350-30-11 100-250V 50/60Hz / 100-250V DC Contactor

Manufacturer's No: AF1350-30-11     Manufacturer: ABB
AF1350-30-11 100-250V 50/60Hz / 100-250V DC Contactor

Availability Back Order

£5,604.90
  • Contact Type: 3 pole contactor
  • Voltage Range: 100-250V AC/DC
  • Maximum Motor Power: 475 kW / 400V AC (AC-3)
  • Maximum Switching Power: 1350 A (AC-1)
  • Control Voltage Range: 100-250V 50/60 Hz and DC
  • Built-in Surge Protection
  • Easily Extendable with Add-on Auxiliary Contact Blocks
  • Wide Range of Accessories Available


Product

Manufacturer Material ID -
AF1350-30-11
Net Weight -
39.00kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
ABB

Electrical data

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation current Ie at AC-3, 400 V -
860 Ampere
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
1350 Ampere
Rated operation power at AC-3, 400 V -
475 Kilowatt
Rated operation power NEMA -
298.28 Kilowatt
Voltage type for actuating -
AC/DC

Mechanical data

Depth -
244 Millimetre
Height -
392 Millimetre
Width -
438 Millimetre

General data

Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Type of electrical connection of main circuit -
Screw connection
ABB

Availability Back Order

£5,604.90
