6XV18305FH10

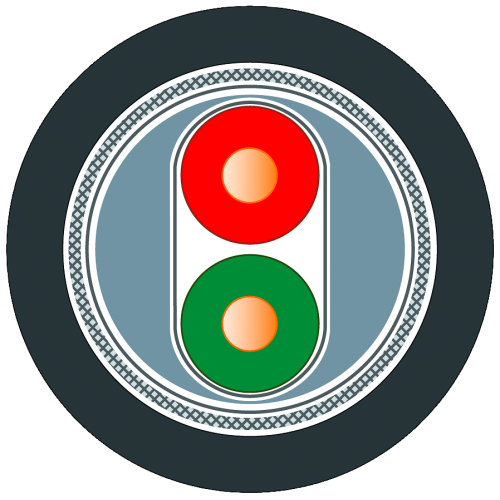

PROFIBUS FC process cable, haz. appl., black jacket, 2-core shielded, sold by the meter

Manufacturer's No: 6XV1830-5FH10     Manufacturer: Siemens
PROFIBUS FC process cable, haz. appl., black jacket, 2-core shielded, sold by the meter

Availability Back Order

£4.00
  • PB FC Process Cable GP/ Ethernet-APL cable GP
  • Bus cable for IEC 61158-2 (PB) and IEC TS 60079-47 (2-WISE)
  • Sheath color: black for Ex applications
  • 2-core shielded
  • Sold by the meter
  • Delivery unit: max. 1000 m
  • Minimum order quantity: 20 m


Product

Manufacturer Material ID -
6XV1830-5FH10
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
20
RoHs Compliance -
Yes
UNSPSC -
26121629

Technical Specification

-
Siemens
Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
NVP value -
- Percentage
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Colour outer sheath -
Black
Diameter conductor -
1.05 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Polyvinyl chloride (PVC)
Reaction-to-fire class according to EN 13501-6 -
Eca
Specification material outer sheath -
Other
Core insulation material -
Other
Flame retardant -
No
Sheath material -
Polyvinyl chloride (PVC)
Conductor category -
Class 1 = solid
Protective sheath -
No
Stranding -
Bundle
Sheath material specification -
Other
Category -
Other
Conductor Diameter -
1.05 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
80 Millimetre
Min. permitted bending radius, moving application/free movement -
80 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
80 Millimetre
Number of cores -
2
Number of stranding elements -
1
Outer diameter approx. -
8 Millimetre
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-20 Degrees celsius
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath colour -
Black
Stranding element -
Pairs

Availability Back Order

£4.00
