6XV18303EH10

PB FC cable;dragchain;bulk stock;PUR;robust

Manufacturer's No: 6XV1830-3EH10     Manufacturer: Siemens
PB FC cable;dragchain;bulk stock;PUR;robust

Availability Back Order

£5.90

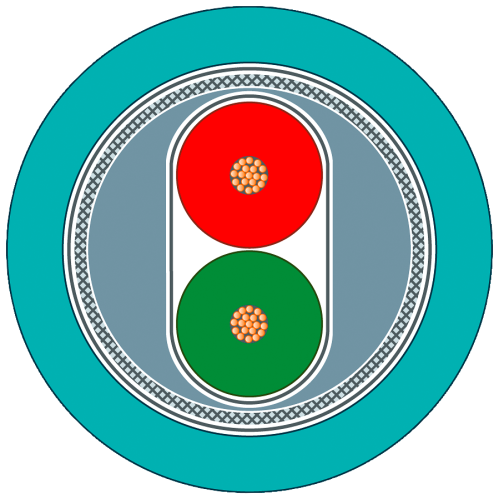

  • PROFIBUS FC Trailing Cable
  • 2-wire shielded
  • Max. acceleration: 4 m/s²
  • Min. bending cycles: 3 million
  • Bending radius: approx. 120 mm
  • Sold by the meter
  • Max. delivery unit: 1000 m
  • Min. order quantity: 20 m


Product

Manufacturer Material ID -
6XV1830-3EH10
Net Weight -
0.74kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
20
RoHs Compliance -
Yes
UNSPSC -
26121629

Technical Specification

-
Siemens

General data

Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
NVP value -
- Percentage
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Core identification -
Colour
Flame retardant -
No
Colour outer sheath -
Other
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Conductor category -
Class 5 = flexible
Protective sheath -
No
Stranding -
Bundle
Reaction-to-fire class according to EN 13501-6 -
Eca
Category -
Other
Conductor surface -
Bare
Individual screen type -
None
Number of cores -
2
Number of stranding elements -
1
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Reaction-to-fire according to EN 13501-6: Class -
Eca
Stranding element -
Pairs

Mechanical data

Min. permitted bending radius, moving application with forced guidance -
- Millimetre
Min. permitted bending radius, moving application/free movement -
- Millimetre
Min. permitted bending radius, stationary application/permanent installation -
- Millimetre
Core insulation material -
Other
Diameter conductor -
0.67 Millimetre
Material outer sheath -
Polyurethane (PUR)
Specification material outer sheath -
Other
Conductor Diameter -
0.67 Millimetre
Outer diameter approx. -
8 Millimetre

Availability Back Order

£5.90
