6GK15000FC10

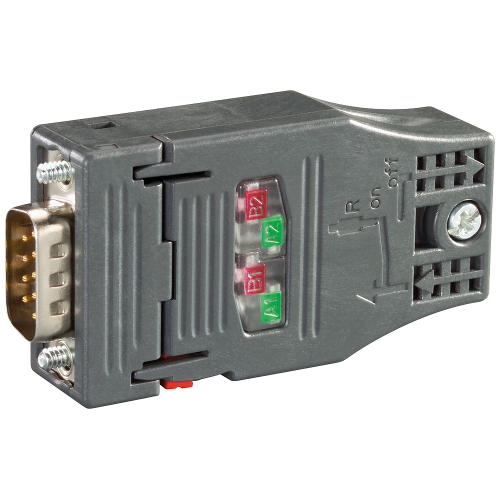

SIMATIC NET, PROFIBUS FC RS 485 plug 180, PB connector, FastConnect port

Manufacturer's No: 6GK1500-0FC10     Manufacturer: Siemens
SIMATIC NET, PROFIBUS FC RS 485 plug 180, PB connector, FastConnect port

View 3D

Availability In Stock

£61.00
  • PROFIBUS FC RS 485 plug 180 connector
  • FastConnect connection plug with axial cable outlet
  • Suitable for Industry PC, SIMATIC OP, OLM
  • Transfer rate: 12 Mbit/s
  • Terminating resistor with isolating function
  • Plastic enclosure


Product

Manufacturer Material ID -
6GK1500-0FC10
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121402

Technical Specification

-
Siemens
Mounting method -
UN
Rated voltage -
- Volt
Number of conduit inlets -
-
Number of poles -
-
Contact type -
UN
Inflammability class of insulation material acc. with UL94 -
UN
Rated surge voltage -
- Kilovolt
Type of electric connection -
UN
Material of contact surface -
UN
Impact strength -
UN
Over voltage category -
UN
Pollution degree -
UN
Number of plug-in contact rows -
-
Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Material insulation body -
UN
Material contact -
UN
Position cable feed -
UN
Rated current In -
- Ampere
Locking mechanism -
Swivel
Material housing -
Plastic
Operation temperature -
-40 Degrees celsius
Ambient temperature -
-25 Degrees celsius
Coating housing -
Uncoated
Degree of protection (IP), mounted -
IP20
Depth -
34.5 Millimetre
Height -
62 Millimetre
Housing material -
Plastic
Operating temperature -
-40 Degrees celsius
Type of locking -
Swivel
Width -
16 Millimetre

Availability In Stock

£61.00
